JBL MTC-CBT-SUS3
Regular price
$37.50
Sale price
$125.00

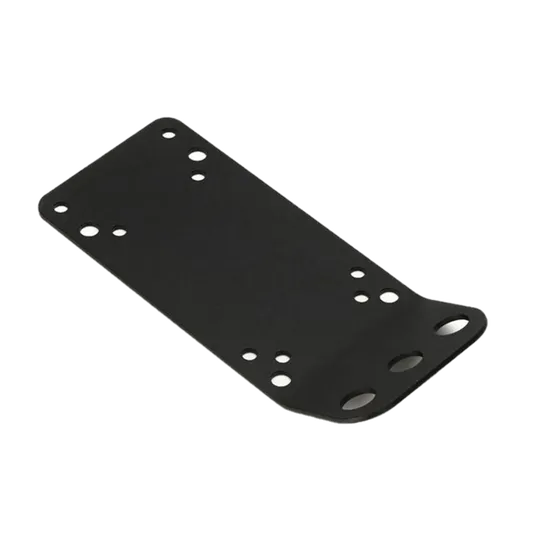

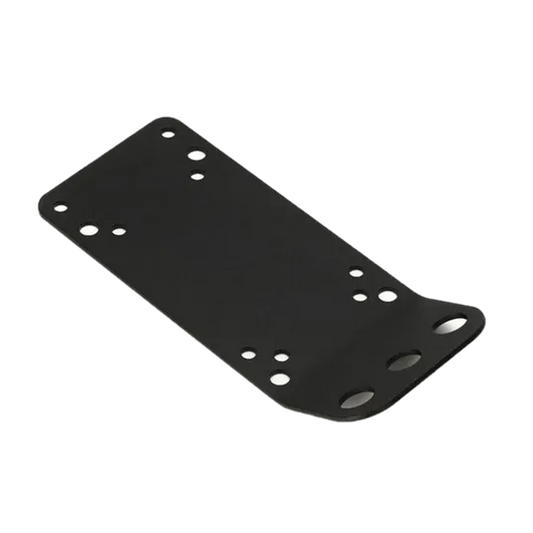

Suspension Adapter Plates for ALL CBT Models. Bent-metal adapter plates that provide convenient clip points for suspending CBT speakers via aircraft cable and other methods. Includes 2 pcs, for top & bottom mounting. Provides 3 clip points each -- center and two sides. Drilled with three speaker spacing/bolt patterns to fit: CBT-50LA-1, 100LA-1, 200LA-1, 70J-1, 70J-1+70JE-1 array, 1000, 1000+1000E array. The MTC-CBT-SUS3 suspension bracket can be mounted to the top and bottom of the CBT 1000 and CBT 1000 + 1000E System if desired. Special hardware in included in the kit that is designed for use with this bracket mounting place (M8 x 40 mm x8) and it is the only hardware that can be used for this purpose.
Provide convenient clip points for suspending CBT speakers via aircraft cable and other methods
Center and two sides
For top & bottom mounting
General Specifications
- Finish
- Black or White
- 2 x MTC-CBT-SUS Brackets
- 8 x M6 x 20 mm PAN HEAD BOLTS (for CBT 50LA-1, 100LA-1, 200LA-1, 70J-1, 70JE-1)
- 8 x M8 x 20 mm PAN HEAD BOLTS (for CBT 1000, 1000E back panel)
- 8 x M8 x 40 mm PAN HEAD BOLTS (for CBT 1000, 1000E top or bottom end-cap)
- 8 x M6 FLAT WASHERS and 8 x M6 LOCK WASHERS
- 8 x M8 FLAT WASHERS and 8 x M8 LOCK WASHERS
