JBL SRX910LA Base Plate (B-Stock)
Regular price
$224.70
Sale price
$749.00

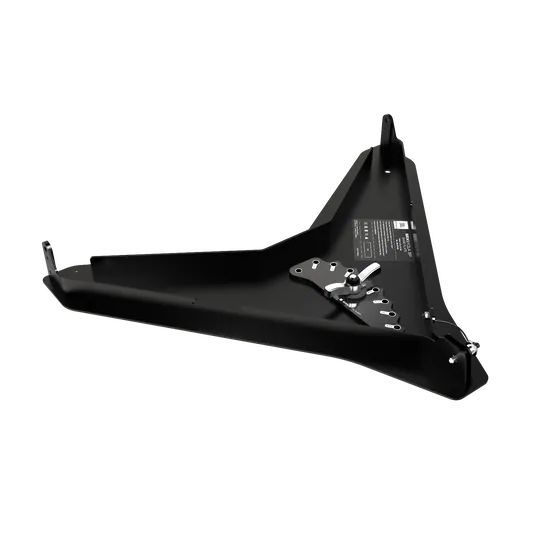

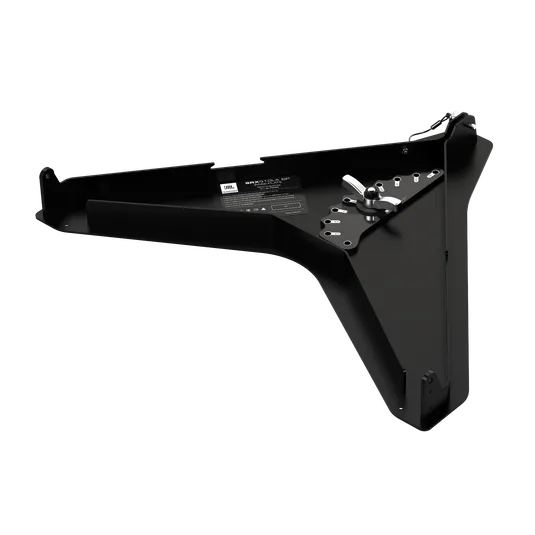

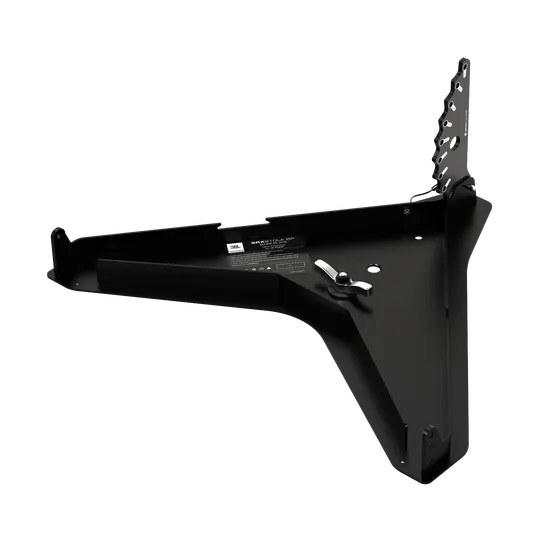

The SRX910LA Base Plate is a universal adapter frame that enables SRX910LA arrays to be ground stacked on top of compatible subwoofers or support structures such as stages, scaffolding, or carts. Using the included M20 screw, the SRX910LA BP connects to any supported subwoofer equipped with a standard M20 pole mount adapter, such as the SRX928S. The rear angle selection bar allows for angles ranging from -15 to +5 degrees. The three included M10 through-holes can be used to permanently attach an SRX910LA array to other support structures. Configurations and load conditions for using the SRX910LA BP can be obtained using JBL Line Array Calculator 3 software. For more information about the base plate and use cases refer to the SRX900 Series Rigging Manual.
SRX910LA BP enables SRX910LA arrays to be ground stacked on top of compatible subwoofers or support structures such as stages, scaffolding, or carts
Allows for angles ranging from -15 to +5 degrees
Can be used to permanently attach an SRX906LA array to other support structures
Using the included M20 screw, the SRX910LA BP connects to any supported subwoofer equipped with a standard M20 pole mount adapter, such as the SRX918S or the SRX928S
Supports up to 4 SRX910LA speakers
To pole mount up to two SRX910LA cabinets
General Specifications
- Construction
- High-grade steel with anti-corrosion coating
- Finish
- Black powder coat
- Mechanical Safe Limit
- (2) SRX910LA
- Mechanical Maximum Limit
- (4) SRX910LA
Dimensions
- Height
- 75 mm (2.9 in)
- Width
- 683 mm (26.9)
- Depth
- 540 mm (21.3 in)
- Net Weight
- 6.0 kg (13 lbs)
- Shipping Weight
- 8.5 kg (18.8 lbs)
- 1 x Base Plate
- 1 x M20 Thumb Screw
