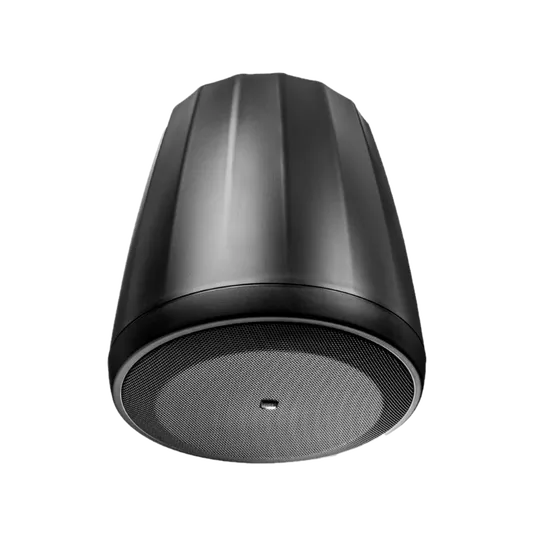

JBL Control 64P/T

General Specifications

Frequency Response (-10 dB)

65 Hz - 15 kHz

Frequency Response (+/-3 dB)

85Hz - 14 kHz

Power Rating

100 W Continuous Program (2 hrs) ; 50 W (200W peak), Continuous Pink Noise (2 hrs) ; 40 W (160W peak) Continuous Pink Noise (100 hrs)

Maximum Input Voltage

18.2 V RMS (2 hrs), 36.4 V peak

Nominal Sensitivity

88 dB Nominal

Coverage Angle

120° (averaged 1 kHz to 4 kHz)

Directivity (Q)

6.2

Directivity Index (DI)

7.3dB (averaged 1kHz – 16kHz)

Rated Maximum SPL @ 1m

105 dB continuous pink noise, 111 dB peak

Rated Impedance

8Ω

Transformer Taps

70V = 30W, 15W, 7.5W & 3.7W ; 100V = 30W, 15W, 7.5W

Transformer Insertion Loss

0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W

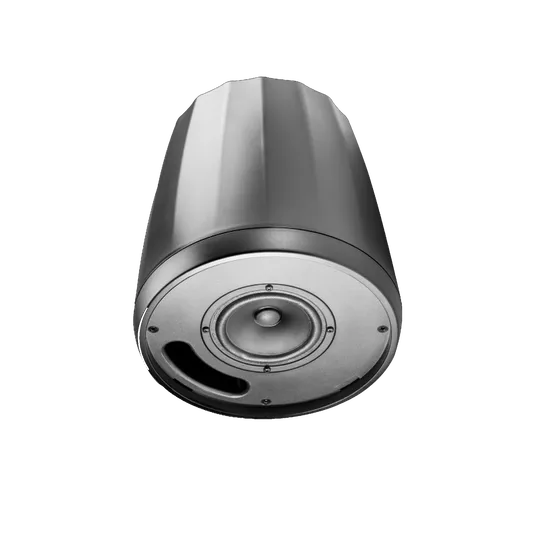

Driver

100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil

Termination

Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.

Suspension

Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).

Safety Agency Ratings

Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Included Accessories

Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.

Optional Accessories

MTC-PC60 top panel / terminal cover

Dimensions

Diameter

234 mm (9.3 in)

Depth

259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.

Net Weight (ea)

2.35 kg (5.2 lbs)

Shipping Weight (pair)

6.07 kg (13.4 lbs)

Design

Enclosure Material

High impact polystyrene

Grille

Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)

Environmental

Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating.

Finish

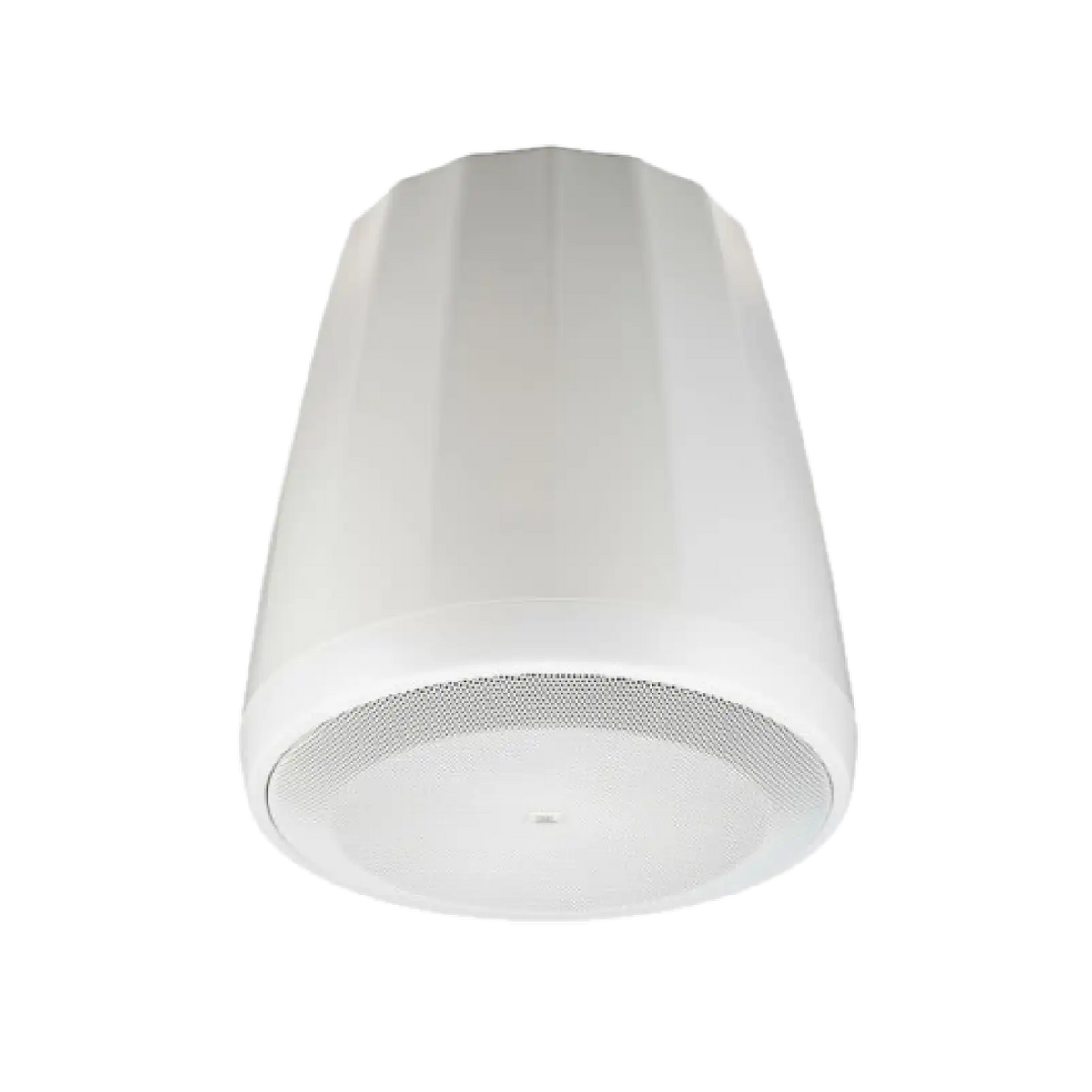

Available in black or white. Paintable

1 x Control 64P/T Ceiling Speaker

1 x Suspension cable system

1 x 2-pin removable locking euro-block connector

1 x Rubber cover for euroblock connector
