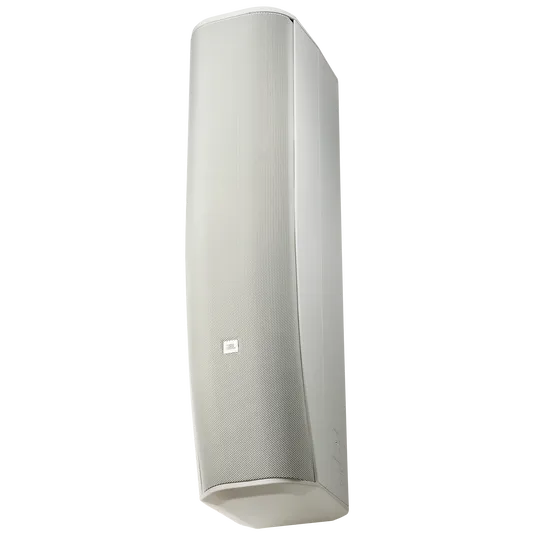

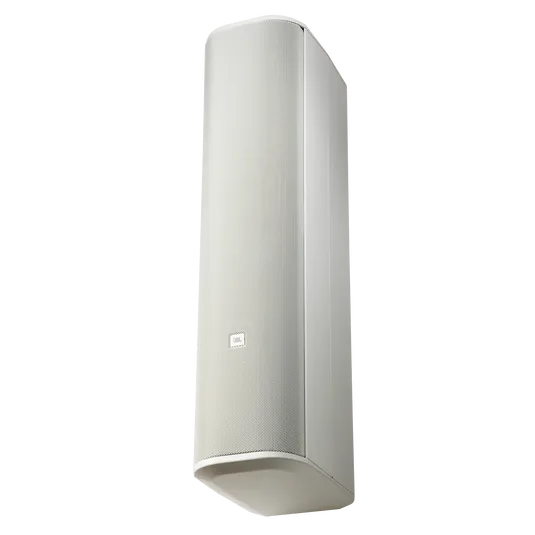

CBT 70J-1 + 70JE-1 Bundle (White)
Regular price
$700.50
Sale price
$2,335.00

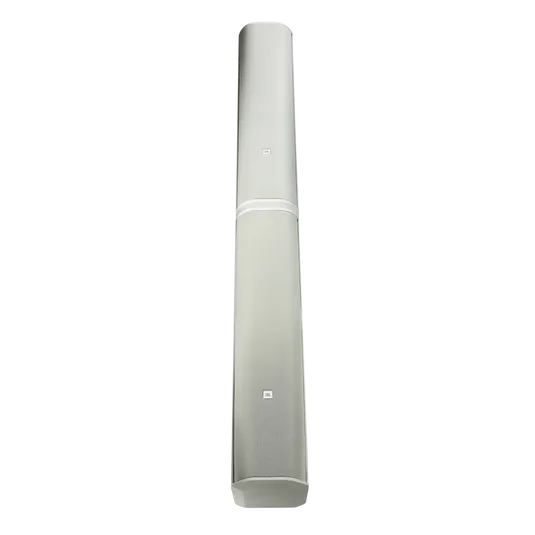

When connected to a CBT 70J-1 line array column speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology™, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers. Buy them together in this special bundle and save!
Read MoreGeneral Specifications
- Components
- Four (4) 130 mm (5 in) LF drivers
- Frequency Range (-10 dB)
- 45 Hz – 700 Hz
- Sensitivity (2.83V @ 1m)
- 90 dB full space, 96 dB half-space (65 Hz - 300 Hz)
- Nominal Impedance
- 8 ohms
- Power Capacity
- 500 W (2000 W peak), 2 hrs ; 350 W (1400 W peak), 100 hrs
- Max SPL
- 117 dB
- Outdoor Capability
- IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
- Mounting
- Coupler plate joins the CBT70J-1 and 70JE-1 end-to-end. Threaded points on coupler plate accepts OmniMount™ 60.0 Series and 120.0 Series compatible wall-mount brackets, as well as points for the swivel (pan)/tilt wall bracket that is included with CBT 70J-1. Twelve (12) additional M6 mounting points accept forged shoulder steel eyebolts or swivel clips for suspension.
- Included Accessories
- Coupler plate
- Optional Accessories
- MTC-PC2 terminal panel cover ; MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy duty speaker stand (must be heavy-duty stand for stability with this array) ; MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
- Dimensions (H x W x D)
- 27.4” x 6.7” x 9.3” (69.4 cm x 17 cm x 23.7 cm)
- Weight
- 18 lb (8.2 kg)
Dimensions
- Net Weight
- 8.2 kg (18 lb)
Design
- Enclosure
- Fiberglass-reinforced ABS cabinet, painted aluminum grille
- 1 x CBT 70JE-1
- 1 x Coupler plate
