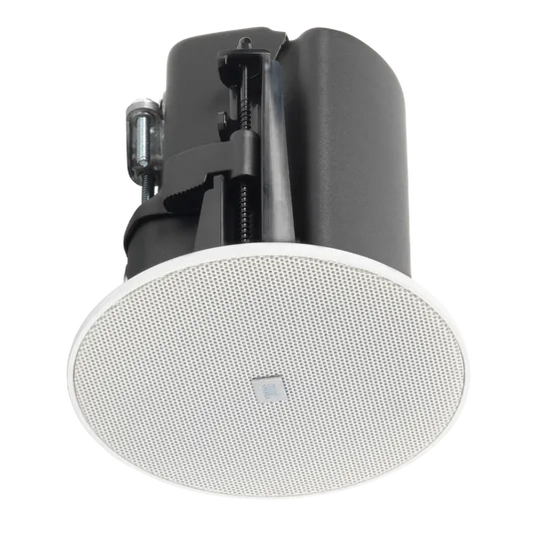

JBL Control 442C/T
Regular price
$52.50
Sale price
$175.00

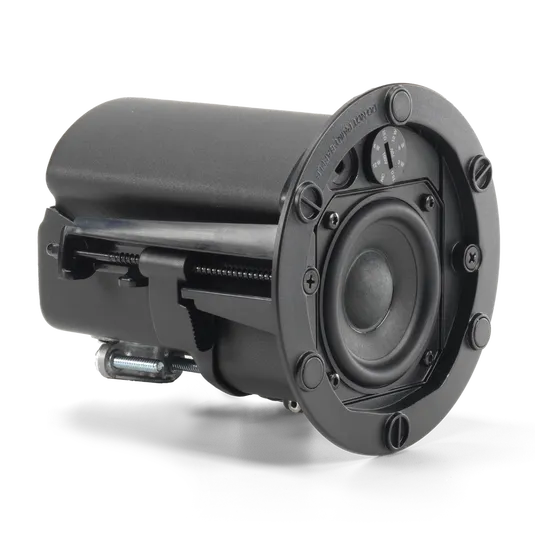

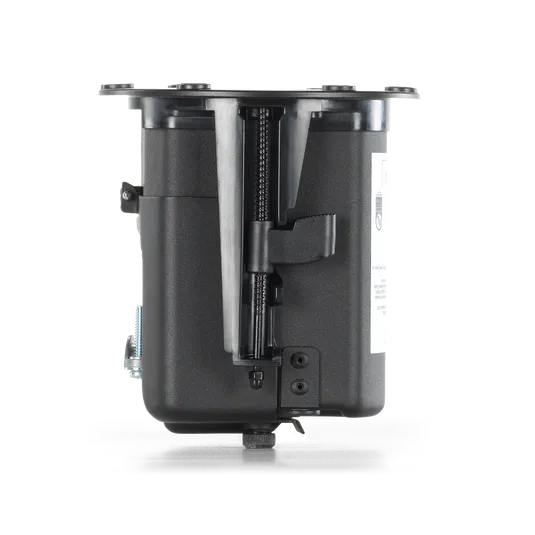

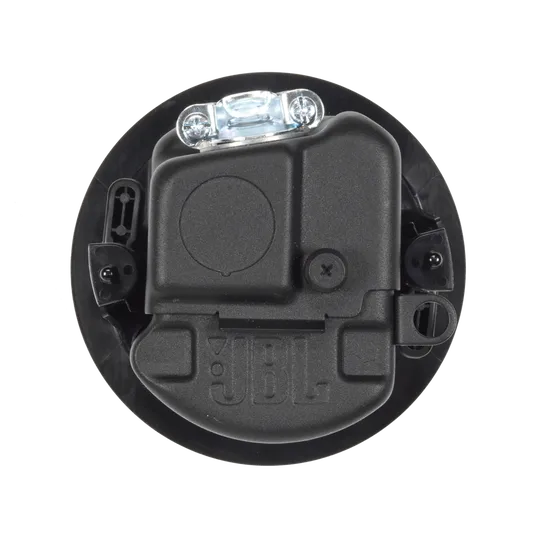

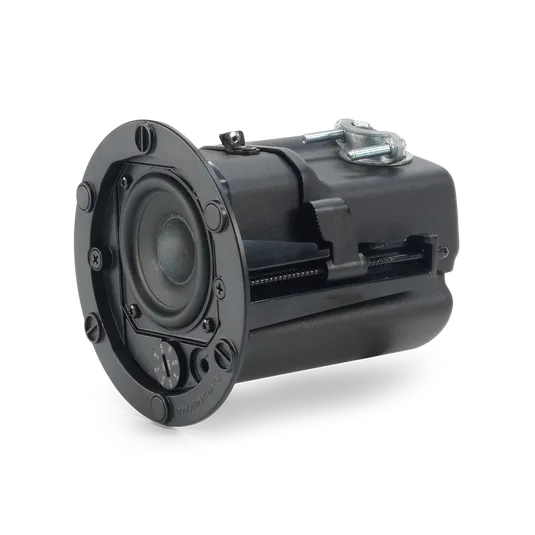

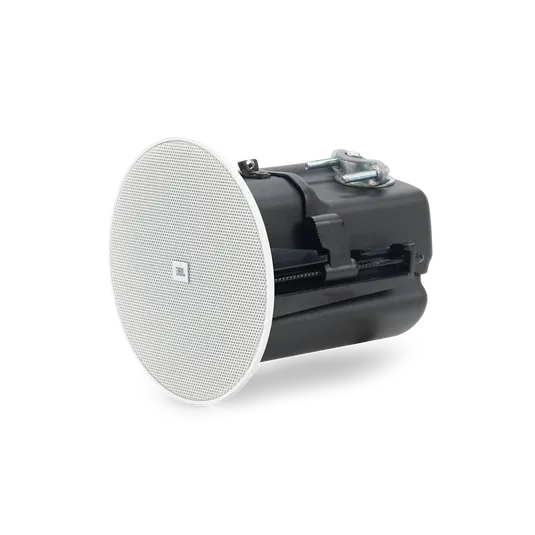

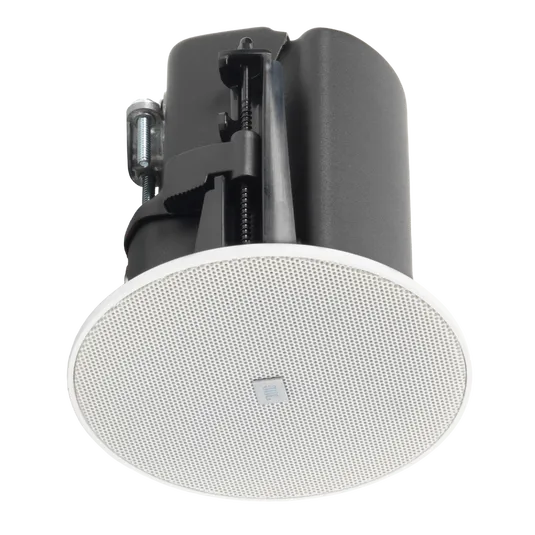

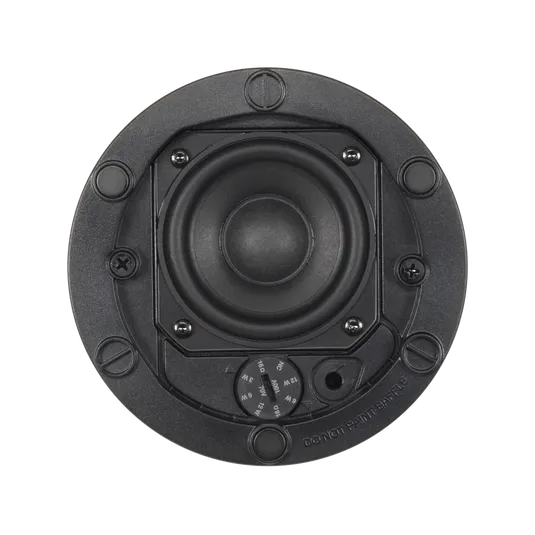

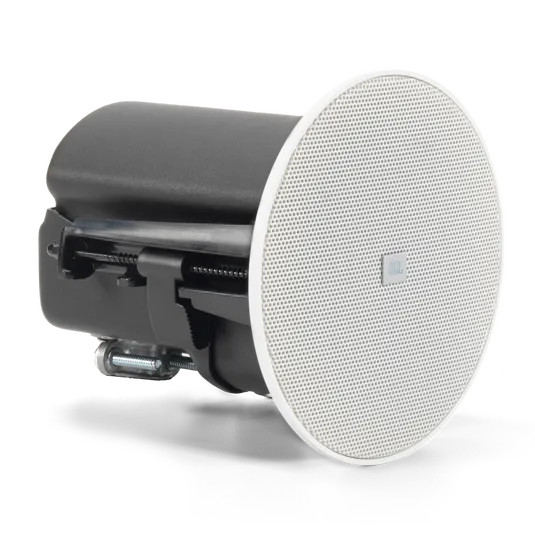

The JBL Control 442C/T, part of the flagship Control 400 Premium Coverage Series, is a compact ceiling loudspeaker, featuring a 2.5” driver and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.
Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.
All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 442C/T supports both 70V/100V and low impedance applications.
For an extremely refined, natural, and powerful sounding subwoofer-satellite system ideal for applications requiring wide bandwidth, superior sonic performance, and minimal visual impact
Provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws
Provides a sleek, refined look and ensures peace of mind
Allows paralleling up to 4 speakers on a 4Ω capable amplifier
Mounting enhancements improve installation repeatability and safety while reducing installation time
Is extremely reliable and works with a wide range of ceiling thicknesses
To support both 70V/100V and low impedance applications
General Specifications
- Frequency Range (-10 dB)
- 130Hz - 20kHz
- Power Capacity
- 22.5 W (90 W Peak), Cont. Pink Noise (2 hrs.) ; 15 W (60 W Peak) Cont. Pink Noise Power (100 hrs.)
- Sensitivity
- 86 dB
- Coverage Angle
- 160° conical
- Maximum SPL (1m)
- 99.5 dB Cont. pink noise (105.5 dB peak)
- Nominal Impedance
- 16 ohms
- Transformer Taps
- 70 V = 12 W, 6 W & 3 W ; 100 V = 12 W, 6 W
- Drivers
- 60 mm (2.5 in) Full Range driver with paper cone, Rubber surround, CCAW coil
- Safety Agency Rating
- Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
-
Environmental
Environmental 0° C to 45 °C.
- IP rating = IP33 per EN/IEC 60529. Operating temperature
- Optional Accessories
- JBL-MTC-442BG black (RAL9004) round grille ; JBL-MTC-442SG white (RAL9003) square grille ; JBL-MTC-442NC new construction bracket ; JBL-MTC-442MR mud-ring construction bracket ; JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
- Color
- Stock grille is white (RAL9003), paintable.
Dimensions
- Dimensions
- 138 mm (5.4 in) H x 131 mm (5.2 in) dia. ; 129 mm (5.1 in) from bottom of ceiling tile to top of backcan
- Ceiling Cutout Size
- 104 mm (4.1 in)
- Net Weight (each)
- 1.1 kg (2.43 lbs)
- Shipping Weight (pair packed in carton)
- 3.22 kg (7.1 lbs)
- 1 x Control 442C/T Ceiling Loudspeaker
- 2 x 2-pin removable locking euro-block connectors
- 1 x Cable Strain Relief
- 1 x White Round Bezel-less Grille (with pre-attached safety tether and tether clip)
- 1 x Cutout template (labeled part of the packaging)
- 1 x C-ring
- C-Ring/Tile-Rail Screws
- 1 x Seal Cover
- 2 x Rubber Boots
