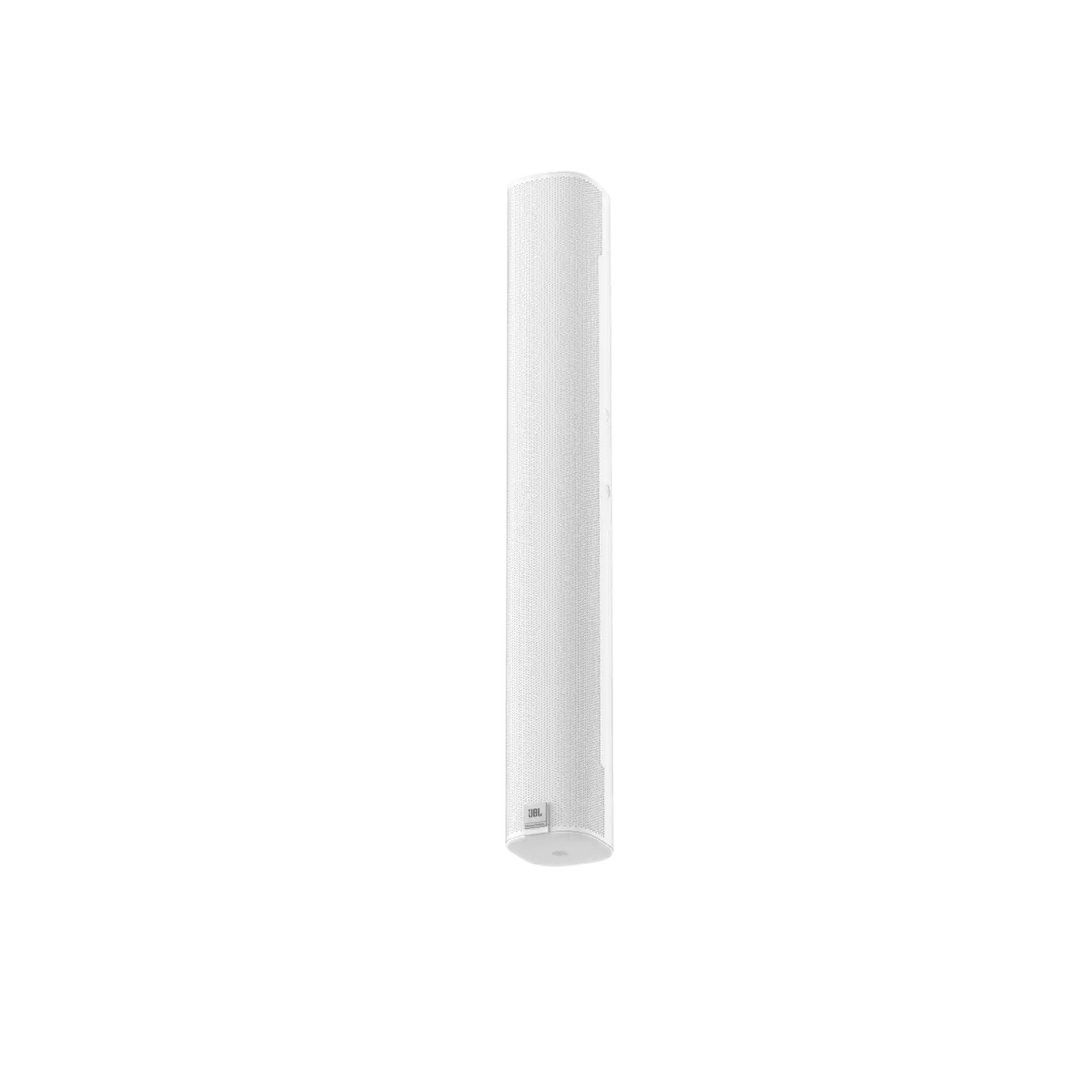

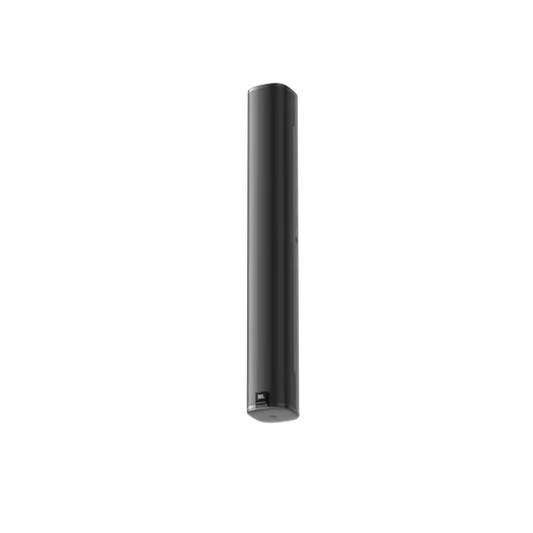

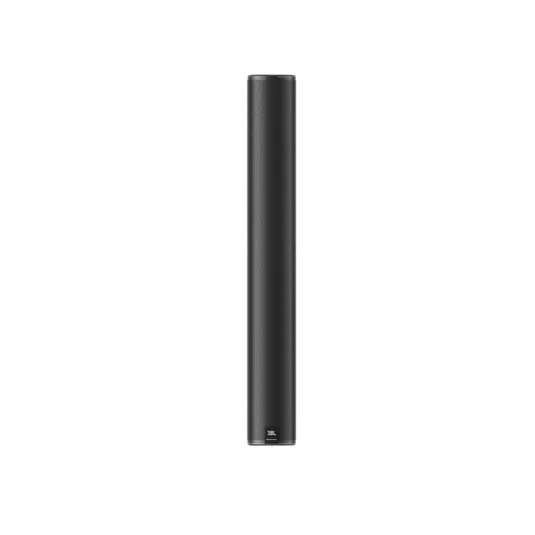

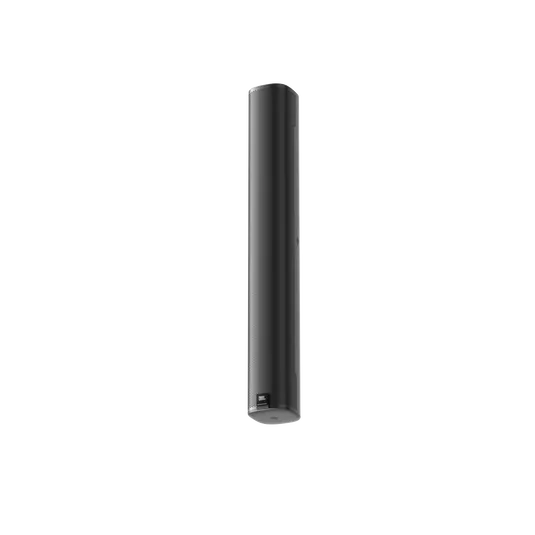

JBL COL600
Regular price
$115.80
Sale price
$386.00
The JBL COL600 is an elegant 24-inch (600 mm) slim column loudspeaker that provides wide horizontal and narrow vertical coverage, with a built-in 10° down-tilt to the aim, providing optimum coverage for most listening areas while allowing the speaker to be installed flat to the wall. The slim, compact design—winner of international design awards for industrial design excellence—complements virtually any architectural décor.
A combination of stylish design and outstanding performance features makes the COL600 ideal for a wide variety of applications, such as conference/meeting rooms, lecture halls, retail stores, concourses, transit spaces, fill applications, audio for video, and other applications where slim, compact design and high performance is desired.
Provides optimum coverage for most listening areas while allowing the speaker to be installed flat to the wall
Delivers clean, clear sound for music or speech

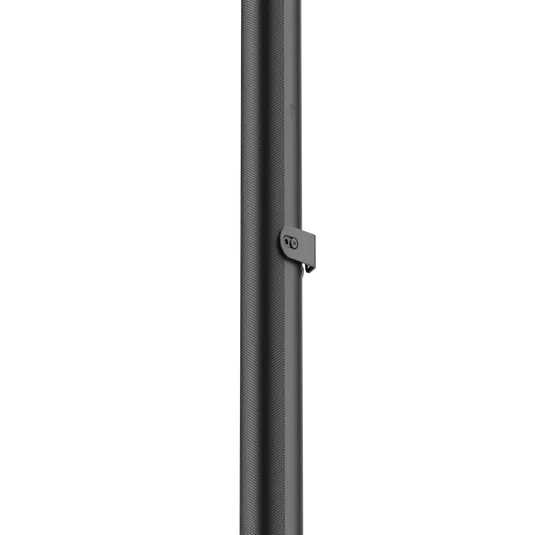

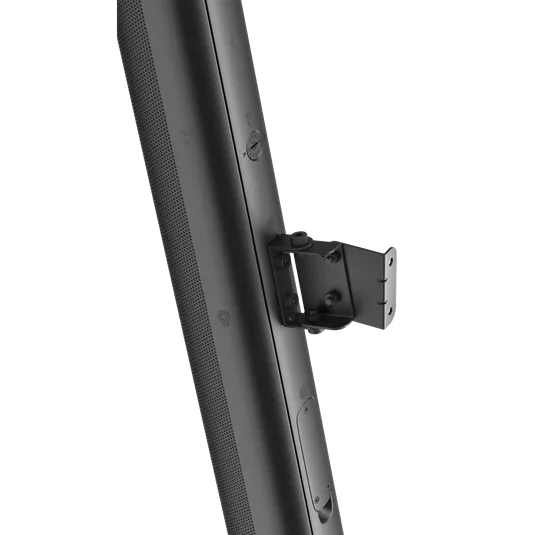

Both close-to-wall L-brackets and low-profile swivel (pan)/tilt wall bracket
Provide maximum radiating area in a column form factor
For protection against ingress of dust or water
Allows for use on either 70V or 100V distributed speaker lines
General Specifications
- Frequency Range (-10 dB)
- 70 Hz – 20 kHz
- Frequency Response (+/-3 dB)
- 105 Hz – 20 kHz
- Power Rating (8Ω setting)
- 160W Continuous Program (2 hrs) ; 80W (320W peak) Continuous Pink Noise (2 hrs) ; 60W (240W peak) Continuous Pink Noise (100 hrs)
- Sensitivity (2.83V @ 1m)
- 86 dB
- Coverage Pattern
- Vertical 110° [1kHz-4 kHz average] ; 10° down-tilt to aiming access for +45°/-65° coverage in relation to physical cabinet aim ; Horizontal 160° [1kHz – 4 kHz average]
- Directivity (Q)
- 7.8
- Directivity Index (DI)
- 8.9 dB
- Rated Maximum SPL
- 105 dB Continuous (111 dB peak) @ 1m
- Nominal Impedance
- 8Ω (in Thru/direct mode)
- Minimum Impedance
- 7.0 Ω@ 275 Hz
- Transformer Taps
- 20W, 10W, 5W @ both 70V & 100V (plus 2.5W @ 70V), and 8Ω thru, selectable via switch
- Transformer Insertion Loss
- Less than 1 dB for all taps
- Maximum Input Voltage
- 21 V RMS (2 hrs), 42 V peak
- Recommended Protective High-Pass
- 70 Hz for 8 Ω operation; 60 Hz for all transformer tap settings (20W, 10W, 5W and 2.5W)
- Drivers
- Two 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers ; One 25 mm (1 in.) tweeter (tweeter located at top of array for better coverage of listening space)
Dimensions
- Dimensions (H x W x D)
- 598 x 102 x 93 mm (23.6 x 4.1 x 3.7 inches)
- Net Weight
- 3.5 kg (7.8 lbs) each
- Shipping Weight
- 4.5 kg (10.0 lbs) each (packed 1 speaker per carton)
- 1 x COL600
- 1 x Low-profile swivel (pan) / Tilt wall bracket
- 2 x L-brackets that can be positioned on top/bottom or side/side insert points
