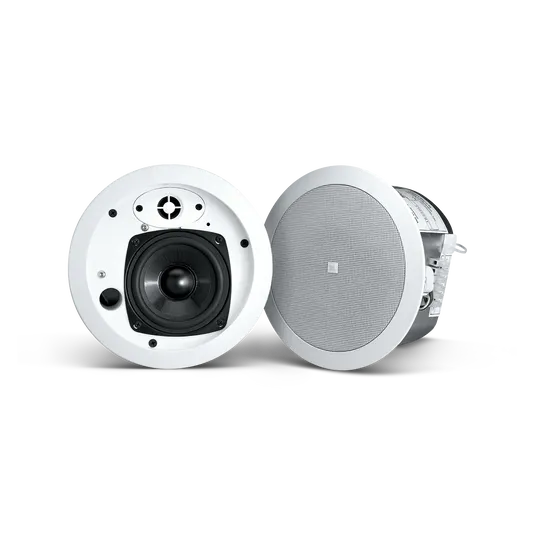

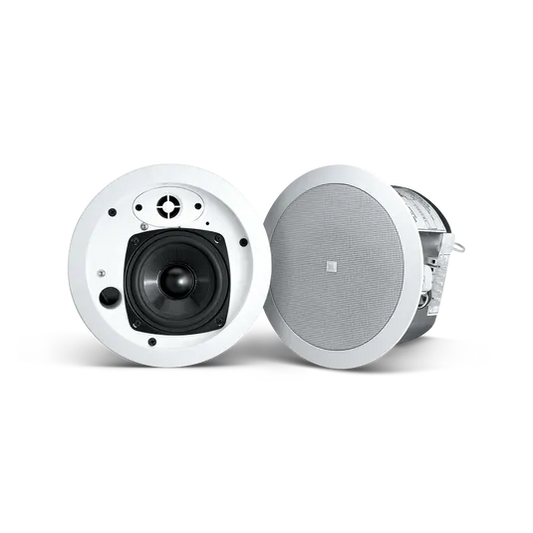

JBL Control 24CT Micro Plus (B-Stock)
Regular price
$48.00
Sale price
$160.00
The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems. These speakers are ideally suited for a wide variety of applications, from restaurants and specialty retail stores to professional offices and airports. Low distortion, a smooth, natural frequency response, and a 25W transformer make the Control 24CT MicroPlus ideal for medium volume business music. Low frequency output can be augmented with the addition of one of the Control Contractor subwoofer models. Similar mid/high frequency voicing to other JBL Control Contractor loudspeakers allows mixing and matching of models within zones without requiring separate equalization. Installation of the Control 24CT MicroPlus is quick and easy. The loudspeaker is packaged with the backcan, grille, support backing bracket and tile rails. In addition, optional new construction brackets are available. The entire installation can be accomplished without requiring access above the ceiling. The Control 24CT MicroPlus backcan is made of formed steel and the speaker is suitable for use in air handling spaces per UL2043. An attachment loop is provided on the backcan for cabling. A seismic tab is provided as a secondary support. The Control 24CT MicroPlus trim and baffle are paintable to match any decor.
For use on 70V or 100V line distribution systems. The transformer has a top tap rating of 25 Watts.
JBL ceiling speakers are packaged as complete assemblies, including integral backcan, front grille, above-ceiling backing and tile bridge support hardware.
JBL ceiling speakers are UL1480 agency listed for use in air handling spaces. The securely enclosed terminal box meets safety codes.
Fits into restricted depth ceilings
Installation is easy. The entire installation can be accomplished without requiring access above the ceiling. Bracketry for suspended ceiling is included. Inputs are attached to an included, removable locking connector with separate loop-out terminals that can be pre-wired allowing ultra-fast snap-on installation. The input terminal plate provides strain relief for either bare wire, plenum cable or flexible conduit.
General Specifications
- Frequency Range (-10 dB)
- 80 Hz - 25 kHz
- Nominal Sensitivity
- 85 dB SPL @ 1 m (3.3 ft)
- Crossover
- 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
- Rated Maximum SPL
- 99 dB @ 1 m (3.3 ft), 25W tap
- Transformer Taps
- 70V = 25W, 12W, 6W taps ; 100V = 25W, 12W taps
- Low Frequency Transducer
- 115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil
- High Frequency Transducer
- 12 mm (0.5 in) polycarbonate
Dimensions
- Outside Dimensions (H x Dia)
- 133 x 195 mm (5.3 x 7.7 in) ; 105 mm (4.1 in) front of ceiling tile to back of the backcan
- Cutout Size
- 167 mm (6.6 in)
- Net Weight (ea)
- 2.5 kg (5.5 lb)
- Shipping Weight (pr)
- 7.6 kg (17 lb)
- Included Accessories
- C-shaped support backing plate ; 2 tile support rails (fits both 2 ft and 600 mm tiles) ; Cutout template, cardboard
- Optional Accessories
- MTC-24TR trim ring for retrofit installations ; MTC-24NC optional new construction bracket, flat ; MTC-24MR optional mud ring construction bracket
- 1 x Control 24CT Micro Plus
- 1 x C-shaped support backing plate
- 2 x Tile support rails (fits both 2 ft and 600 mm tiles)
- 1 x Cutout template, cardboard
