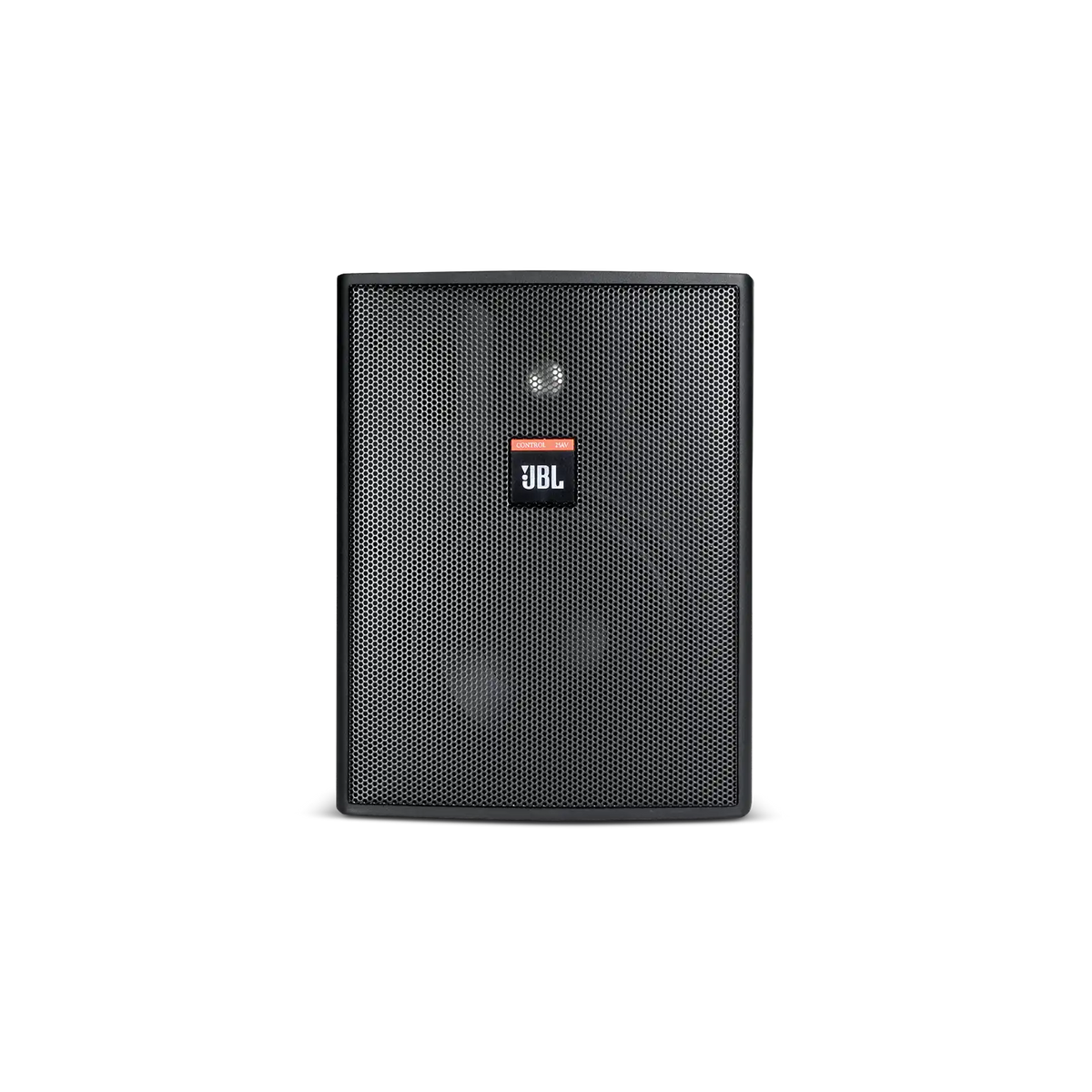

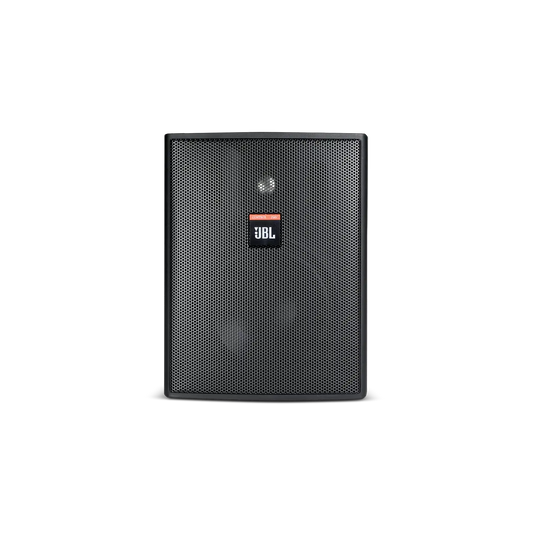

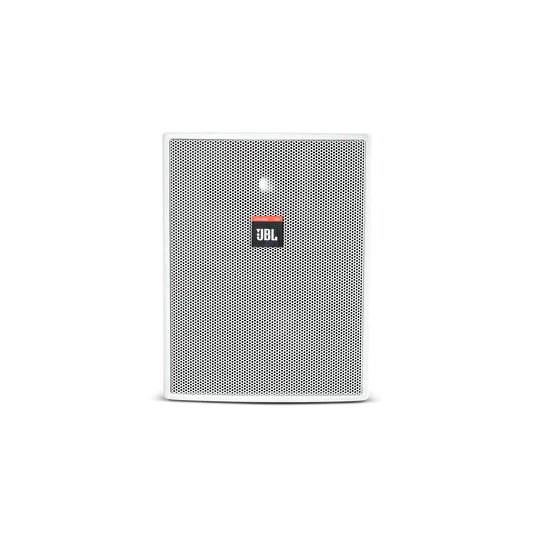

JBL Control 25AV-LS
Regular price
$97.50
Sale price
$325.00
The Control® 25AV-LS is built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems. The Control 25AV-LS utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker. Premium performance capability and even coverage ensures excellent sound quality throughout the listening area. A top-quality, low saturation transformer, enables the loudspeaker to be used on either 70 volt or 100 volt distributed speaker lines, with similar fidelity performance to the 8 ohm bypass position. The patented InvisiBall® mounting method is simple to install, aims easily, and provides a high degree of theft deterrence. The cabinet accepts a variety of paints to match any décor. Weather resistance is maximized by utilizing an aluminum grille featuring polyester powder coating and liquid-tight MTC-PC2 terminal covers. Coating the woofer cone in polypropylene and terminating its circumference in JBL’s WeatherEdgeTM, a seamless, butyl rubber extension of the woofer surround, protects critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance. Nickel/zinc rust-resistant terminals ensure a secure input connection.
For use in fire alarm and/or emergency communication systems
Fits into a wide range of decors
Allows higher operational levels and improved system reliability
Provides a high degree of both vertical and horizontal rotation, and a high degree of theft deterrence
Weather resistance is maximized by utilizing an aluminum grille featuring polyester powder coating and liquid-tight MTC-PC2 terminal covers. Coating the woofer cone in polypropylene and terminating its circumference in JBL’s WeatherEdgeTM, a seamless, butyl rubber extension of the woofer surround, protects critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance. Nickel/zinc rust-resistant terminals ensure a secure input connection.
For operation on distributed speaker lines
General Specifications
- Frequency Range (-10 dB)
- 90 Hz - 20 kHz
- Power Capacity
- 200 Watts Continuous Program Power (at 8 ohm bypass mode) ; 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) ; 60 Watts (at 60W tap setting
- Nominal Sensitivity
- 87 dB, 1W at 1 m (1 kHz – 10 kHz, ave., at 8 ohm bypass mode) ; 71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap)
- Nominal Coverage Angle
- 110° x 85° (1 kHz to 16 kHz, ave.)
- Typical Horizontal
- 120° at 4 kHz, 120° at 2 kHz, 155° at 1 kHz, 360° at 500 Hz
- Typical Vertical
- 100° at 4 kHz, 85° at 2 kHz, 160° at 1kHz, 360° at 500 Hz
- Directivity Factor (Q)
- 4.8 (500 Hz to 4kHz)
- Directivity Index (DI)
- 6.5dB (500 Hz to 4kHz)
- Rated Maximum SPL
- 107 dB @ 1 m (3.3 ft) average, 113 dB peak, at 8 ohm bypass mode ; 89 dB at 4 m (13.2 ft) average, at 60W tap setting, measured.
- Rated Impedance
- 8 ohms (in bypass, position 5, mode) - tap 1 = 667 ohms; tap 2 = 333 ohms; tap 3 = 167 ohms, tap 4 = 83 ohms (typical)
- Transformer Taps
- 60W 30W, 15W, (& 7.5W @ 70V)
- Low Frequency Driver
- 130mm (5.25 in) with polypropylene coated paper cone with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
- High Frequency Driver
- 20mm (.75 in) titanium coated PEI
- Included Accessories
- 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench
- Optional Accessories
- MTC-25V for vertical columnar mounting of up to 3 speakers ; MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage. ; MTC-28/25CM to install speaker down from the ceiling.
Dimensions
- Dimensions (H x W x D)
- 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
- Net Weight (ea)
- 3.8 kg (8.4 lbs) ea
- Shipping Weight (pair)
- 8.6 kg (19 lbs) pair
Design
- Input Connectors
- Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
- Cabinet Material
- ABS, (materials rated UL94-5VA)
- Grille
- Aluminum with polyester powder coating
- Safety Agency: UL1480-UUMW Listed (S7232), EN54-24:2008 certified (Certificate No. 0359-CPR-00245), NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
- 1 x Control 25AV-LS
- 1 x MTC-PC2 input panel cover
- 1 x InvisiBall™ wall-mounting system
- 1 x 6 mm x 100 mm hex key
