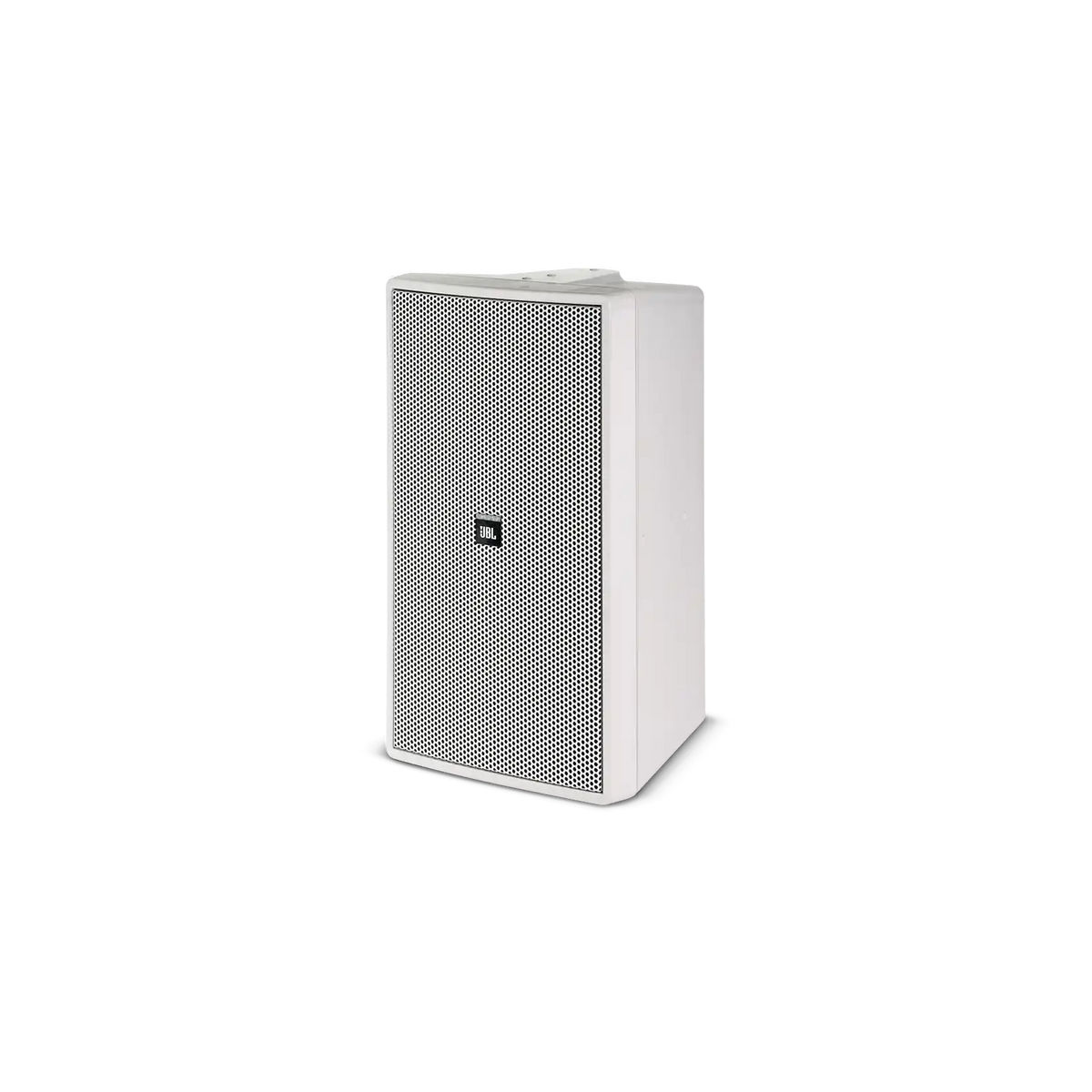

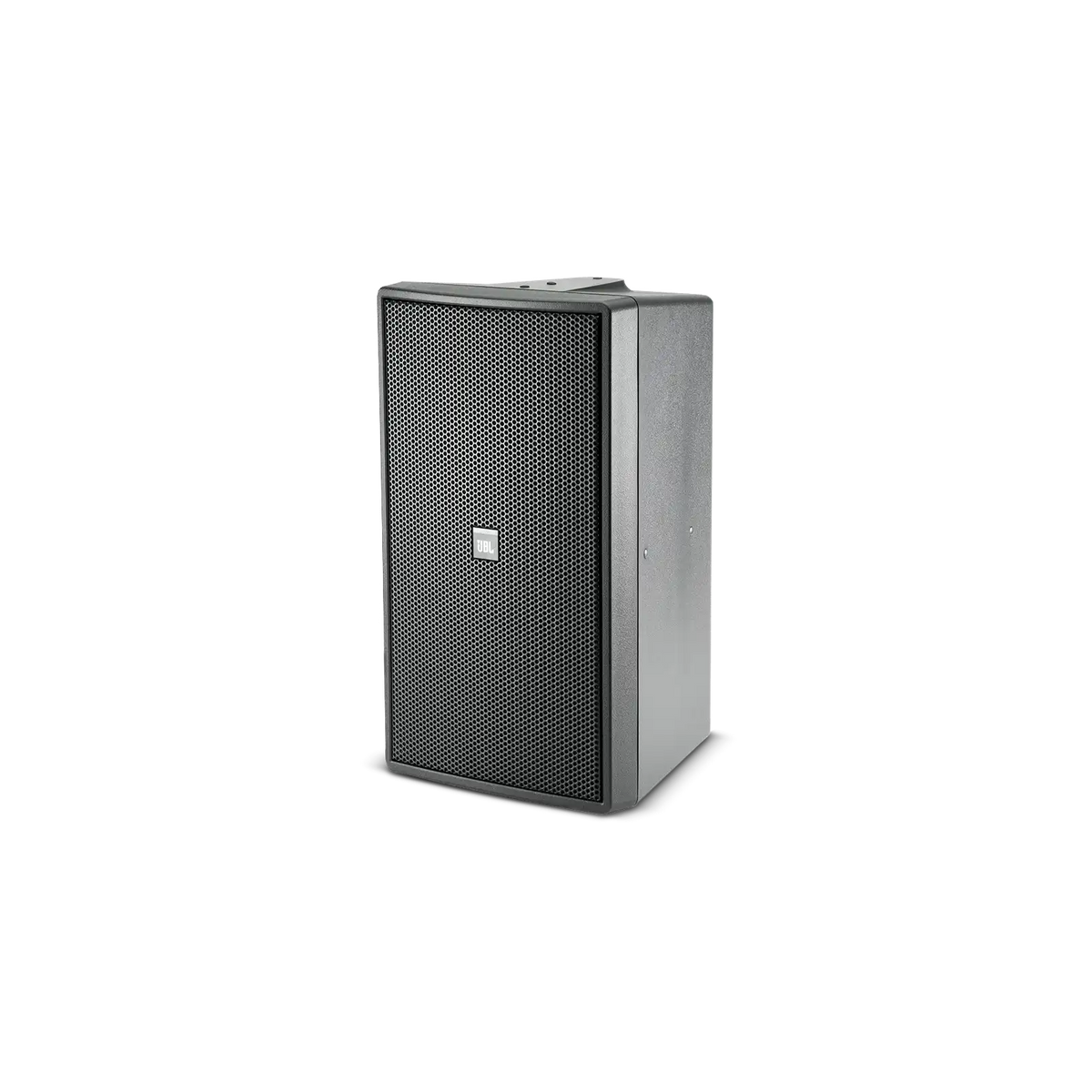

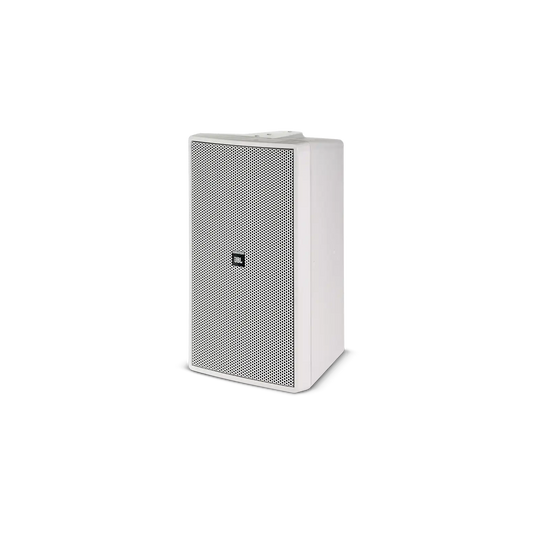

JBL Control 29AV-1
Regular price
$171.60
Sale price
$572.00
The Control® 29AV-1 provides improved voicing for extremely flat, high fidelity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker. The rotatable high-frequency horn allows use of the speaker in either vertical or horizontal orientation. Consistent coverage ensures excellent sound character throughout the listening area. Moderate magnetic shielding allows use of the speaker as close as 230 mm (9") to video monitors. The top-quality line distribution transformer, designed for minimal insertion loss and reduced saturation, allows use of either 70V or 100V distributed speaker lines. In bypass position, the 8Ω impedance allows use of multiple speakers on a loudspeaker line. The included InvisiBall mounting method is simple to install, aims easily and provides a high degree of theft deterrence. InvisiBall allows horizontal rotation of up to 41° off-axis and vertical rotation of up to 36° (horn end inward) or 23° (woofer end inward). Attachment points for the optional MTC-29UB U-bracket allows for compact installation. Weather resistance has beenmaximized. The woofer’s cone is made of kevlar, surround is pure butyl rubber, and the driver basket is rear loaded to minimize direct exposure. The compression driver’s diaphragm is pure titanium. The grille is thermoset composite coated and comes with foam to minimize incursion of water. Nickel/zinc rust-resistant terminals ensure a secure input connection. An MTC-PC2 sealed-entrance cover is included to further protect the speaker’s terminals. JBL’s exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full fi delity sound. Available in black or white (-WH). The cabinet will accept a variety of paints to match any décor.
Provides a high degree of both vertical and horizontal rotation, and a high degree of theft deterrence
Allows use of the speaker in either vertical or horizontal orientation
Allows use of the speaker as close as 230 mm (9") to video monitors
Allows higher operational levels and improved system reliability
The woofer’s cone is made of kevlar, surround is pure butyl rubber, and the driver basket is rear loaded to minimize direct exposure. The compression driver’s diaphragm is pure titanium. The grille is thermoset composite coated and comes with foam to minimize incursion of water. Nickel/zinc rust-resistant terminals ensure a secure input connection. An MTC-PC2 sealed-entrance cover is included to further protect the speaker’s terminals.
Ensures excellent sound character throughout the listening area
For operation on distributed speaker lines
General Specifications
- Frequency Range (-10 dB)
- 37 Hz –18 kHz
- Frequency Response (+/-3 dB)
- 43 Hz – 15 kHz
- 100 Hr Power Capacity
- 300 Watts Continuous Program Power ; 150 Watts Continuous Pink Noise
- Maximum SPL @ 1m
- Short-Term = 118 dB; Long-Term = 112 dB
- Nominal Sensitivity
- 90 dB, 1W @ 1 m (3.3 ft)
- Nominal Coverage Angle
- 110° H x 85° V, rotatable
- Directivity Factor (Q)
- 6.7, averaged 500 Hz to 16 kHz
- Directivity Index (DI)
- 8.3 dB, averaged 500 Hz to 16 kHz
- Nominal Impedance
- 8 ohms (THRU setting)
- Minimum Impedance
- 6.3 ohms @ 230 Hz 3.3 ohms @ 4.1 kHz
- Crossover Type
- 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
-
Transformer Taps
Transformer Taps 8Ω nominal
- 70V = 110W, 55W, 28W & 14W ; 100V = 110W, 55W, & 28W ; Thru Position
- Low Frequency Driver
- 200 mm (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former
- High Frequency Driver
- 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
- Included Accessories
- 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench
- Optional Accessories
- MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket
Dimensions
- Dimensions (H x W x D)
- 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in)
- Net Weight (ea)
- 12.2 kg (26.8 lbs)
- Shipping Weight (ea)
- 14.0 kg (30.8 lbs)
Design
- Enclosure Material
- High impact polystyrene
- Grille
- Thermoset composite coated steel
- Overload Protection
- Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during extreme overload conditions.
- Environmental
- IEC 529 IP-X4 splashproof rating. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
- Termination
- Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm)
- Safety Agency Rating
- Transformer is listed per UL1876.
- 1 x Control 29AV-1
- 1 x MTC-PC2 input panel cover
- 1 x InvisiBall™ wall-mounting system
- 1 x 6 mm x 260 mm hex key
