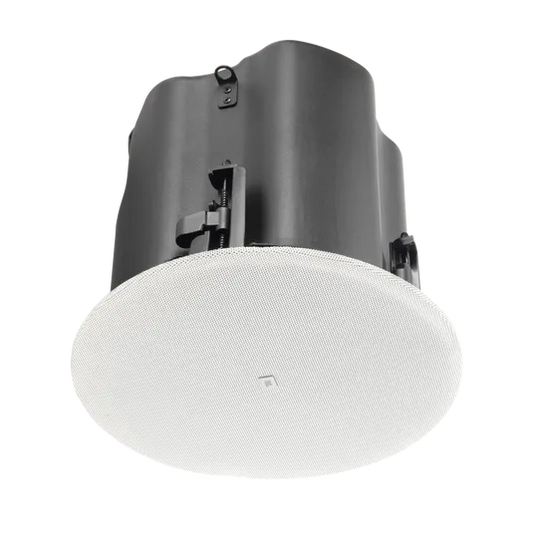

JBL Control 416C/T
Regular price
$74.10
Sale price
$247.00

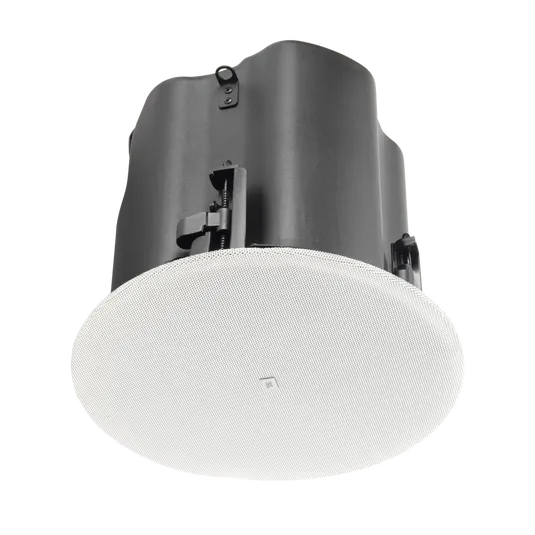

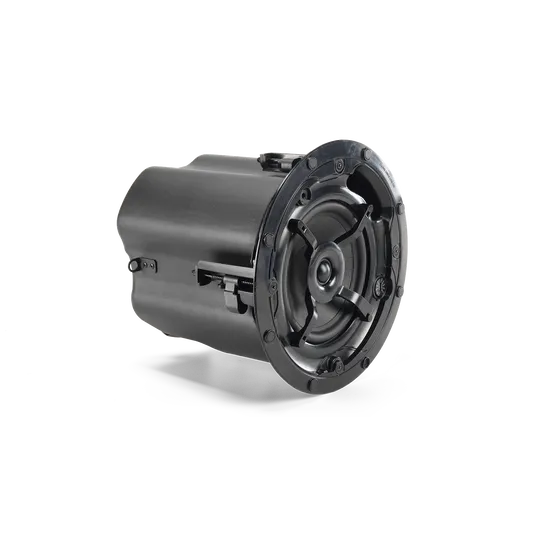

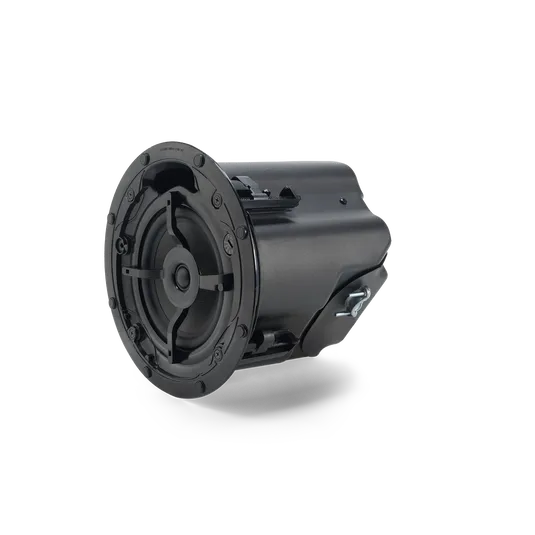

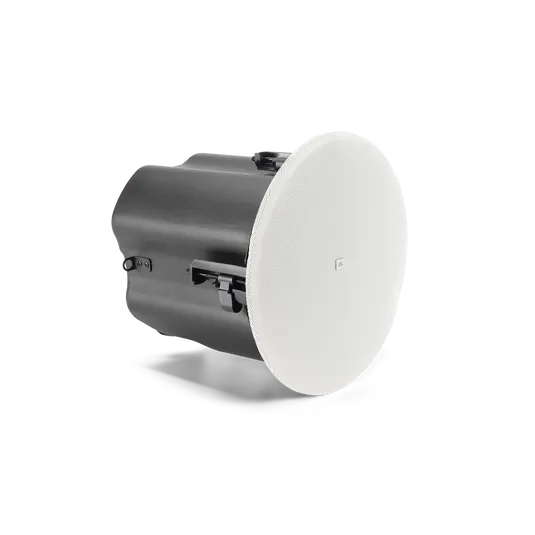

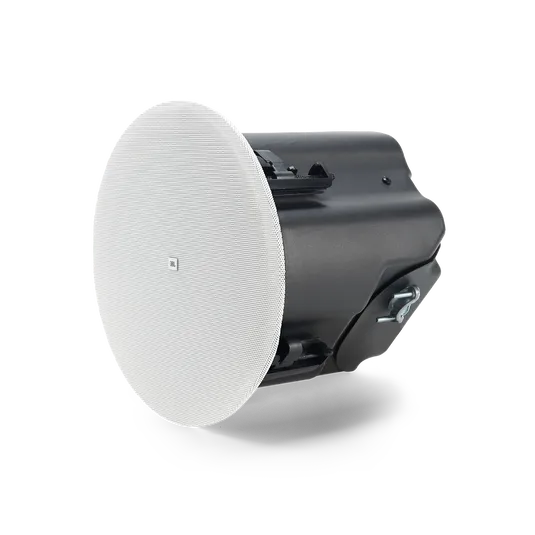

The JBL Control 416C/T, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.
All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

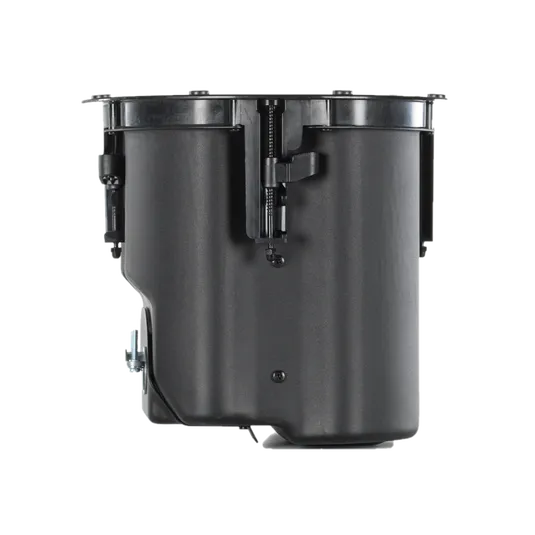

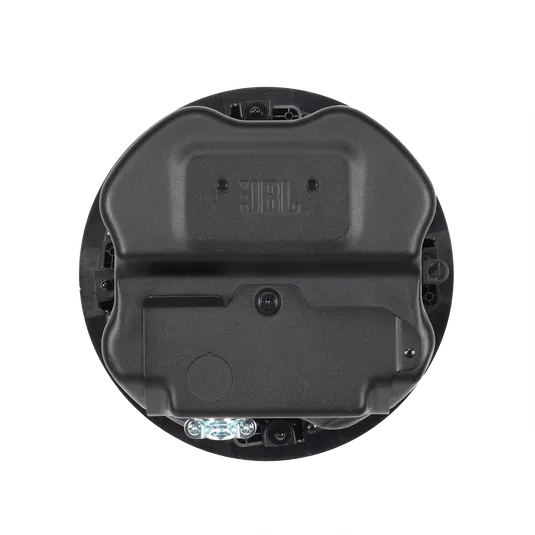

The Control 416C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 416C/T supports both 70V/100V and low impedance applications.
High power handling, wide frequency response and low distortion ensures pleasant, enveloping sound throughout the listening space
Mounting enhancements improve installation repeatability and safety while reducing installation time
Is extremely reliable and works with a wide range of ceiling thicknesses
To support both 70V/100V and low impedance applications
Delivers consistent sound quality for listeners located both off and on axis
Provide both top and side cable entry ports
Provides a sleek, refined look and ensures peace of mind
General Specifications
- Frequency Range (-10 dB)
- 61Hz - 20kHz
- Power Capacity
- 75W (300W Peak) Cont. Pink Noise (2 hrs) ; 50W (200W Peak) Cont. Pink Noise (100 hrs)
- Sensitivity (1m/1W)
- 89dB
- Coverage Angle
- 120° conical
- Maximum SPL (1m)
- 108 dB continuous pink noise (114 dB peak)
- Nominal Impedance
- 8Ω
- Transformer Taps
- 70 V = 30 W, 15 W, 7.5 W & 3.8 W ; 100 V = 30 W, 15 W, 7.5 W
- Drivers

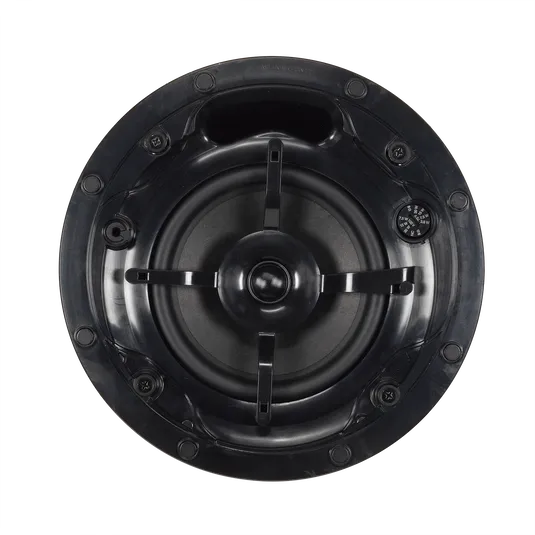

- LF = 165 mm (6.5 in) with paper cone, SBR surround. ; HF = 20 mm (0.75 in) soft dome
- Safety Agency Rating
- Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
- Environmental
- IP rating = IP33 per EN/IEC 60529. Operating temperature = 0° C to 45 °C.
- Optional Accessories
- JBL-MTC-416BG black (RAL9004) round grille ; JBL-MTC-416SG white (RAL9003) square grille ; JBL-MTC-416WG weather grille ; JBL-MTC-426NC new construction bracket ; JBL-MTC-426MR mud-ring construction bracket ; JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
- Color
- Stock grille is White (RAL9003), paintable
Dimensions
- Ceiling Cutout Size
- 223 mm (8.8 in)
- Dimensions
- 233 mm (9.3 in) H x 261 mm (10.4 in) dia. ; 222 mm (8.9 in) from bottom of ceiling tile to top of backcan
- Net Weight (ea)
- 3.75 kg (8.27 lbs)
- Shipping Weight (pair)
- 12.64 kg (27.87 lbs)
- 1 x Control 416C/T Ceiling Speaker
- 2 x 2-pin removable locking euro-block connectors
- 1 x Cable Strain Relief
- 1 x White Round Bezel-less Grille (with pre-attached safety tether and tether clip)
- 1 x Cutout Template (labeled part of the packaging)
- 1 x C-Ring
- 2 x Tile Rails (fits both 2 x 4 ft and 600 x 1200 mm tiles)
- C-Ring / Tile-Rail Screws
- 1 x Seal Cover
- 2 x Rubber Boots
