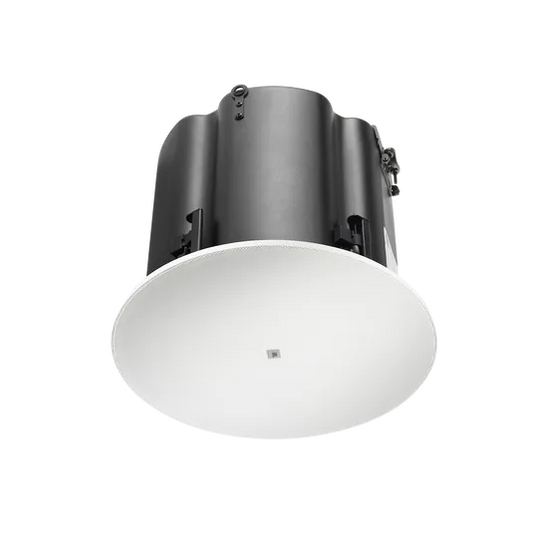

JBL Control 419CS/T
Regular price
$136.50
Sale price
$455.00

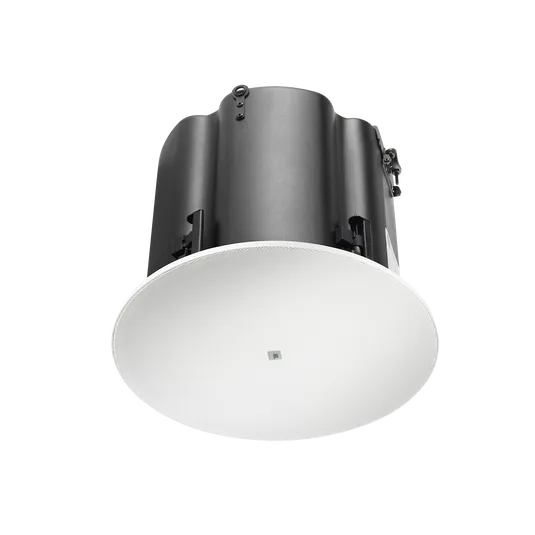

The JBL Control 419CS/T is a ceiling subwoofer, featuring an 8” woofer and integrated enclosure for installation in most ceiling plenum spaces. When you need to extend low-end performance, the Control C419CS/T integrates seamlessly with Control 400 Series full-range models to significantly extend low-frequency bass output. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 419CS/T includes a transformer to support both 70V/100V and low impedance applications. Priced as each, but packaged and sold only in pairs.

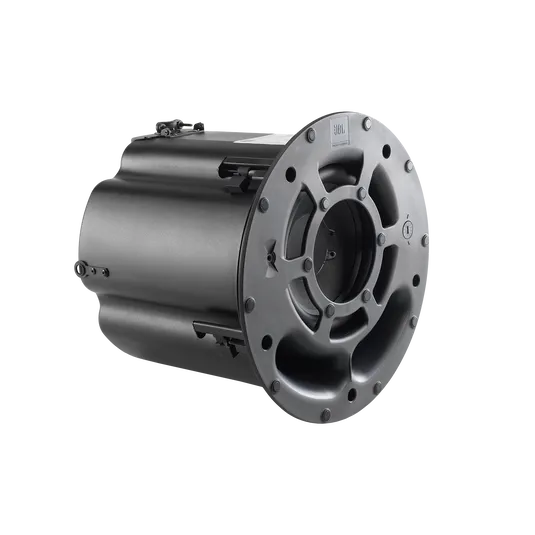

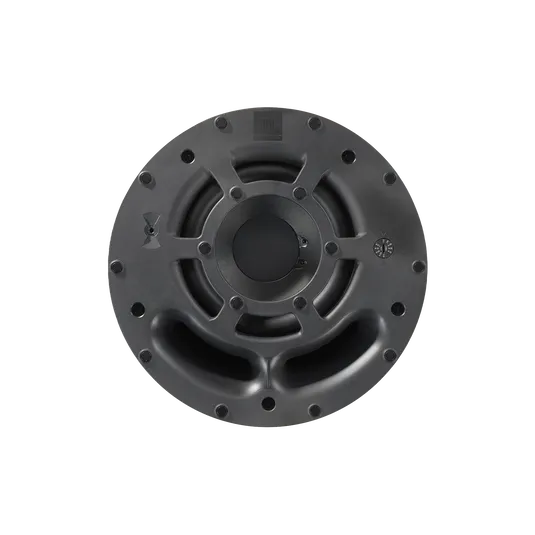

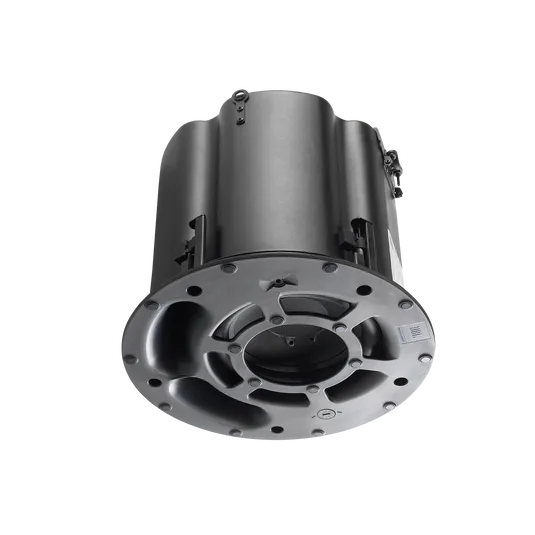

An 8” (200mm) woofer and two large, tapered ports ensure warm, smooth bass response
Mounting enhancements improve installation repeatability and safety while reducing installation time
Is extremely reliable and works with a wide range of ceiling thicknesses
To support both 70V/100V and low impedance applications
For simple integration with full-range speakers, including Control 400 full-range models

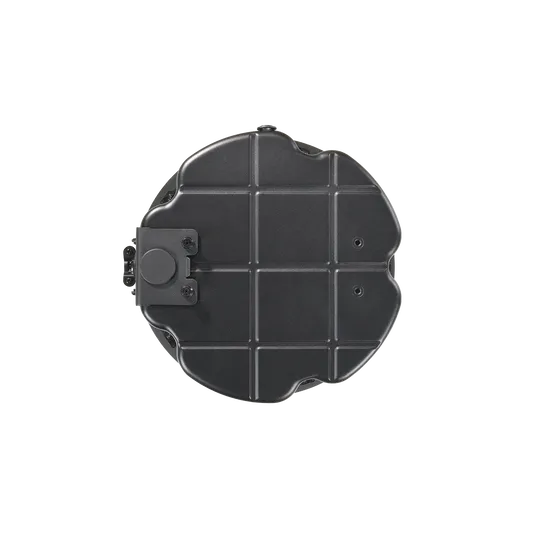

Provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws

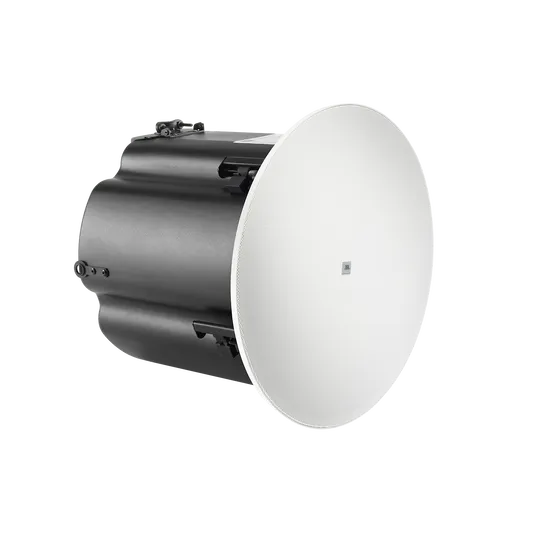

Provides a sleek, refined look and ensures peace of mind
General Specifications
- Frequency Range (-10 dB)
- 47 Hz – 320 Hz
- Power Capacity
- 320 W Continuous Program (2 hrs) ; 160 W (640 W Peak), Continuous IEC shaped Pink Noise (2 hrs) ; 80 Watts (320 W Peak) Continuous IEC shaped Pink Noise Power (100 hrs)
- Sensitivity
- 89 dB96 dB in ceiling near corner (π/2 loading) 93 dB in ceiling near wall (1 π loading) 90 dB, 1 W @ 1 m (3.3 ft) in center of ceiling (2 π loading, half-space)
- Coverage Angle
- 180° conical
- Maximum SPL (1m)
- 124 dB peak (118 dB continuous, 2 hrs, π/2 loading) ; 118 dB peak (112 dB continuous, 2 hrs, 2 π loading)
- Nominal Impedance
- 8 ohms
- Transformer Taps
- 70 V = 60 W, 30 W, 15 W & 7.5 W ; 100 V = 60 W, 30 W, 15 W
- LF Driver
- 200 mm (8 in)
- HF Driver
- n/a
- Safety Agency Rating
- Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 & NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/ EN60849.
- Environmental
- Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0°C to 45°C
- Optional Accessories
- JBL-MTC-419BG black (RAL9004) magnetic round grille, JBL-MTC-419SG white (RAL9003) magnetic square grille, JBL-MTC-419NC new construction bracket, JBL-MTC-419MR mud-ring construction bracket
- Color
- Stock grille is white (RAL9003), paintable.
Dimensions
- Dimensions
- 289 mm (11.4 in) H x 346 mm (13.6 in) dia. 280 mm (11.0 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan).
- Ceiling Cutout Size
- 308 mm (12.2 in)
- Net Weight (each)
- 8.8 kg (19.4 lbs)
- Shipping Weight (pair packed in carton)
- 24.3 kg (53.5 lbs)
- 1 x Control 419CS/T 8" Ceiling Subwoofer
- 1 x Grille (White round bezel-less grille for magnetic attachment with pre-attached safety tether and tether clip)
- 1 x C-ring
- 2 x Rubber boot
- 1 x Cable strain relief
- 1 x C-ring/tile-rail screws
- 1 x Cutout template
- 1 x Tile rails (fits both 2 x 4 ft and 600 x 1200 mm tiles)
- 1 x Connector (2-pin removable locking euro-block)
