JBL Control 424LP
Regular price
$78.00
Sale price
$260.00

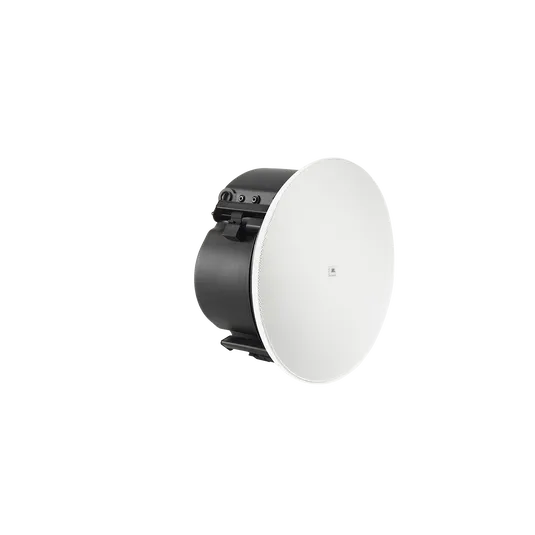

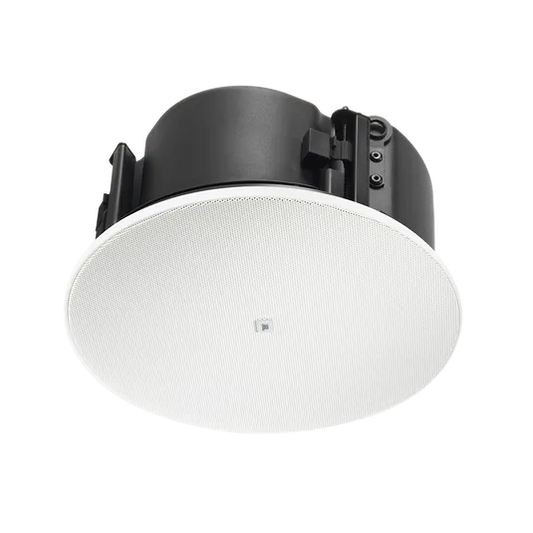

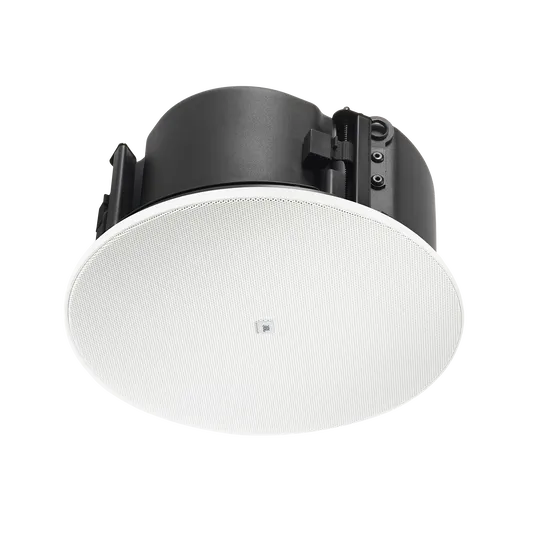

The JBL Control 424LP is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 130° of consistent, full, rich sound character that closely matches that of the Control 424C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 424LP includes a transformer to support both 70V/100V and low impedance applications. Priced as each, but packaged and sold only in pairs.
The Coplanar RBI™, or CRBI™ delivers an especially smooth sound character that remains consistent, clear, and pleasant across a wide coverage area
Mounting enhancements improve installation repeatability and safety while reducing installation time
Is extremely reliable and works with a wide range of ceiling thicknesses
To support both 70V/100V and low impedance applications
Ideal for applications where ceiling plenum space is restricted
Provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws
Provides a sleek, refined look and ensures peace of mind
General Specifications
- Frequency Range (-10 dB)
- 75 Hz – 18 kHz
- Power Capacity
- 120 W Continuous Program (2 hrs) ; 60 W (240 W Peak), Continuous Pink Noise (2 hrs) ; 40 W (160 W Peak) Continuous Pink Noise Power (100 hrs)
- Sensitivity
- 85 dB
- Coverage Angle
- 130° conical
- Maximum SPL (1m)
- 103 dB continuous pink noise (109 dB peak)
- Nominal Impedance
- 16 ohms
- Transformer Taps
- 70 V = 30 W, 15 W, 7.5 W & 3.7 W ; 100 V = 30 W, 15 W, 7.5 W
- LF Driver
- 100 mm (4 in)
- HF Driver
- 19 mm (0.75 in)
- Safety Agency Rating
- Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 & NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/ EN60849.
- Environmental
- Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0°C to 45°C
- Optional Accessories
- JBL-MTC-426BG black (RAL9004) magnetic round grille JBL-MTC-426SG white (RAL9003) magnetic square grille JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket
- Color
- Stock grille is white (RAL9003), paintable.
Dimensions
- Dimensions
- 107 mm (4.2 in) H x 253 mm (9.9 in) dia. 98 mm (3.9 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan).
- Ceiling Cutout Size
- 224 mm (8.8 in)
- Net Weight (each)
- 3.0 kg (6.7 lbs)
- Shipping Weight (pair packed in carton)
- 10.9 kg (24 lbs)
- 1 x Control 424LP 4" CRBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker with Low-Profile Enclosure
- 1 x Grille (White round bezel-less grille for magnetic attachment with pre-attached safety tether and tether clip)
- 1 x C-ring
- 2 x Rubber boot
- 1 x Cable strain relief
- 1 x C-ring/tile-rail screws
- 1 x Cutout template
- 1 x Tile rail (fits both 2 x 4 ft and 600 x 1200 mm tiles)
- 1 x Connector (2-pin removable locking euroblock)
