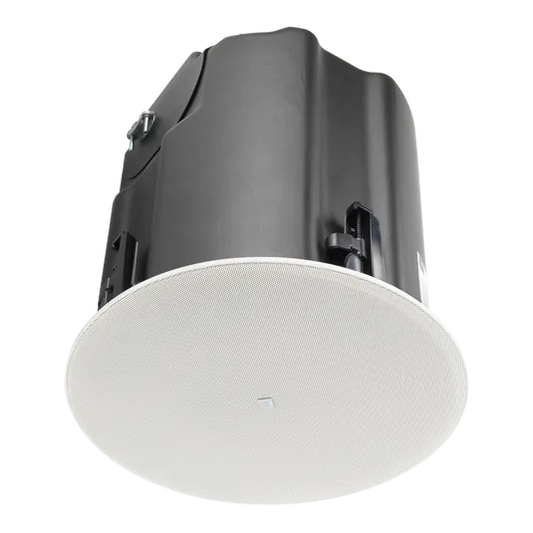

JBL Control 440CS/T
Regular price
$195.00
Sale price
$650.00

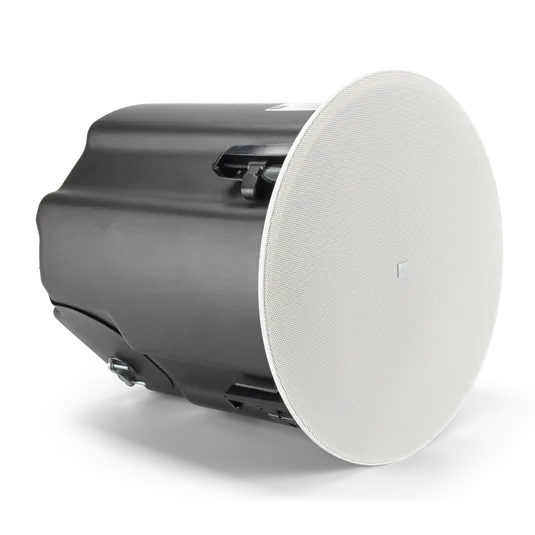

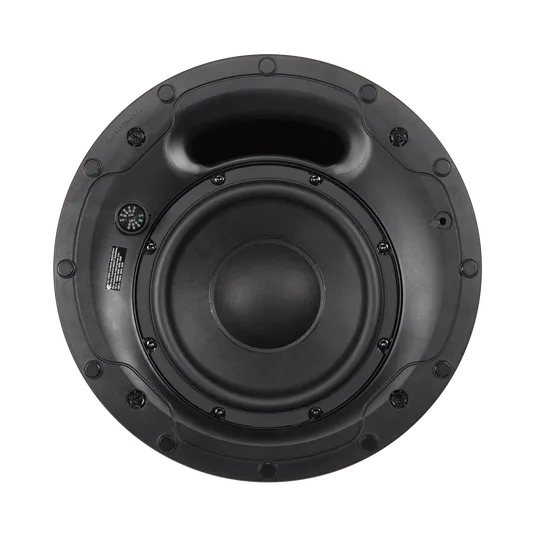

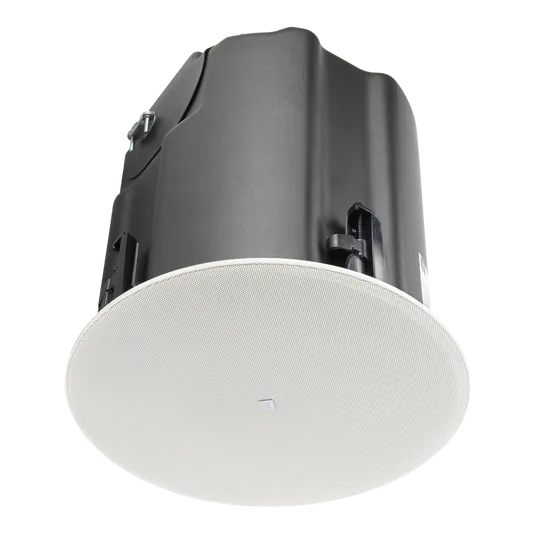

The JBL Control 440CS/T, part of the flagship Control 400 Premium Coverage Series, is a high-power, low-distortion in-ceiling subwoofer, featuring an 8” woofer, passive crossover, and an extremely durable, reinforced enclosure.

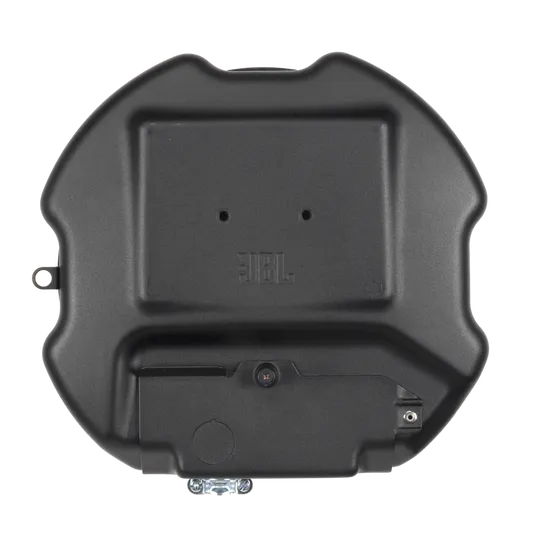

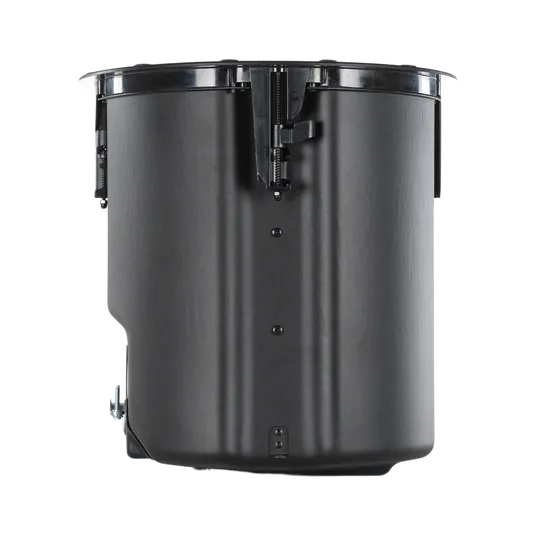

Control 400 Series ceiling speakers boast thoughtfully engineered mounting features to enhance safety, efficiency, and repeatability. Terminal covers allow for convenient top or side cable entry and are secured effortlessly with captive hand-screws. The reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment.

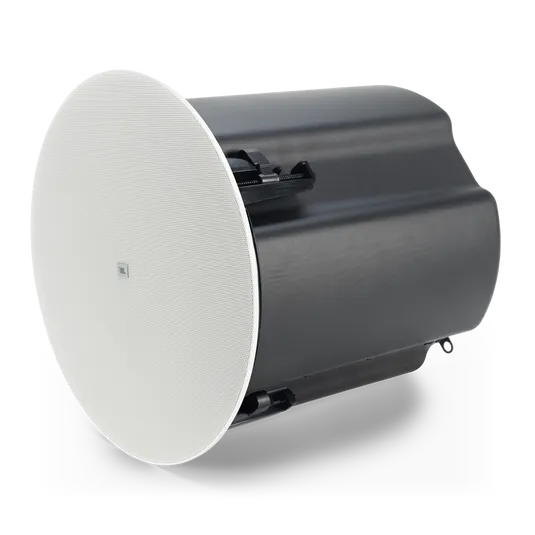

All models embrace design elements tailored for modern interiors. The included full-face magnetic grille is paintable for seamless integration into any decor, while available black and square grilles provide added customization. Additionally, the Control 440CS/T supports both 70V/100V and low impedance applications.
High-power, low-distortion in-ceiling subwoofer

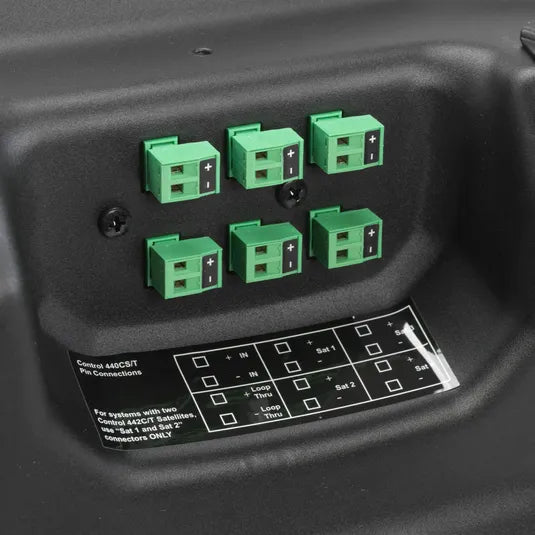

Provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws
Provides a sleek, refined look and ensures peace of mind
For two or four satellite speakers, enabling it to be used as part of a subwoofer-satellite system
Mounting enhancements improve installation repeatability and safety while reducing installation time
Is extremely reliable and works with a wide range of ceiling thicknesses
To support both 70V/100V and low impedance applications
General Specifications
- Frequency Range (-10 dB)
- 32Hz - 300Hz
- Power Capacity
- 150 W (600 W Peak), Cont. Pink Noise (2 hrs.) ; 100 W (400 W Peak) Cont. Pink Noise Power (100 hrs.)
- Sensitivity
- 95dB in ceiling near corner (π/2 loading)
- Maximum SPL (1m)
- 117 dB Cont. pink noise (123 dB peak, π/2 loading)
- Nominal Impedance
- 8Ω
- Transformer Taps
- 70 V = 80 W, 40 W, 20 W & 10 W ; 100 V = 80 W, 40 W, 20 W
- Drivers

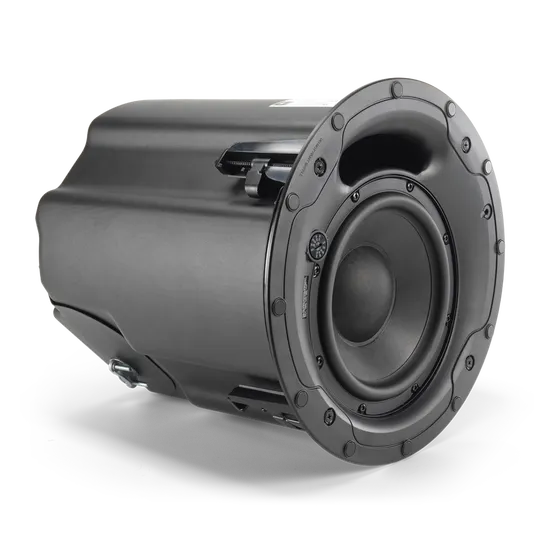

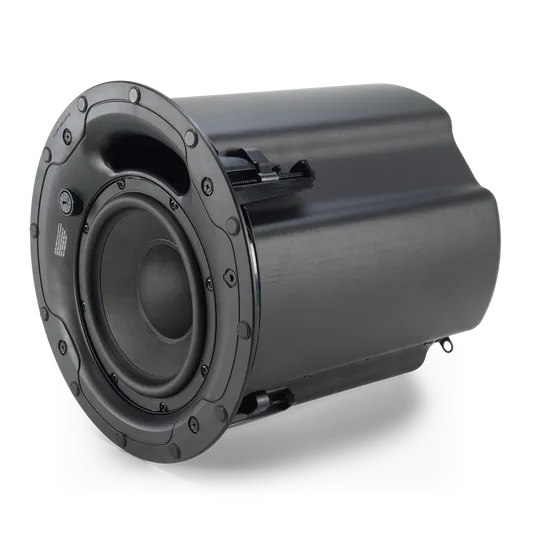

- 200 mm (8 in) treated paper cone with SBR surround and high-performance magnet
- Safety Agency Rating
- Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
-
Environmental
Environmental 0° C to 45 °C.
- IP rating = IP33 per EN/IEC 60529. Operating temperature
- Optional Accessories
- JBL-MTC-440BG black (RAL9004) round grille ; JBL-MTC-440SG white (RAL9003) square grille ; JBL-MTC-419NC new construction bracket ; JBL-MTC-419MR mud-ring construction bracket ; JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
- Color
- Stock grille is white (RAL9003), paintable.
Dimensions
- Dimensions
- 351mm (13.8 in) H x 342 mm (13.5 in) dia. ; 337mm (13.3 in) from bottom of ceiling tile to top of backcan
- Ceiling Cutout Size
- 307 mm (12.1 in)
- Net Weight (each)
- 8.72 kg (19.22 lbs)
- Shipping Weight (pair packed in carton)
- 25.02 kg (55.16 lbs)
- 1 x Control 440CS/T Ceiling Subwoofer
- 2 x 2-pin removable locking euro-block connectors

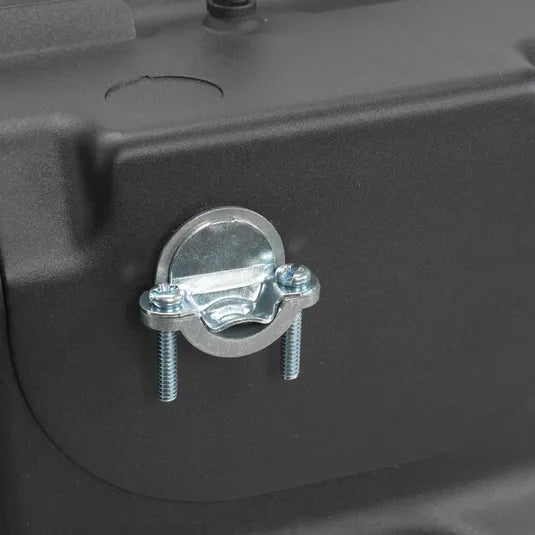

- 1 x Cable Strain Relief
- 1 x White Round Bezel-less Grille (with pre-attached safety tether and tether clip)
- 1 x Cutout template (labeled part of the packaging)
- 1 x C-ring
- 2 x Tile Rails (fits both 2 x 4 ft and 600 x 1200 mm tiles)
- C-Ring/Tile-Rail Screws
- 1 x Seal Cover
- 6 x Rubber Boots
