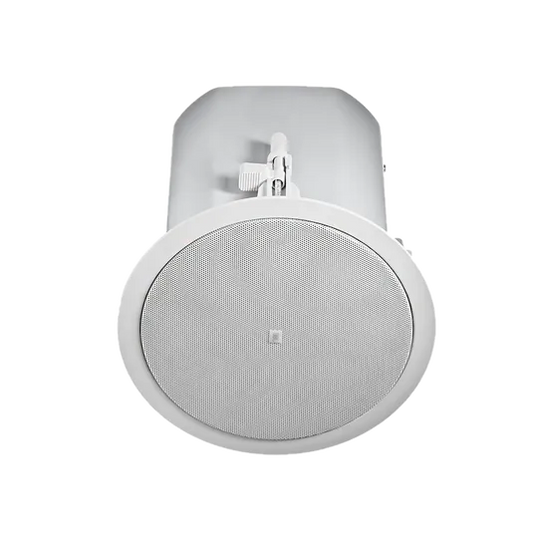

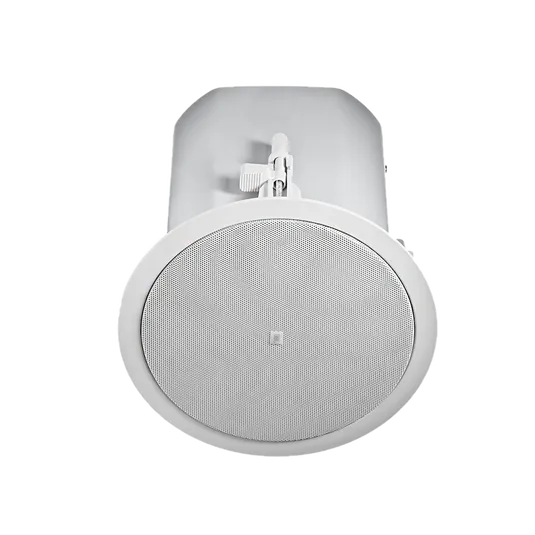

JBL Control 45C/T (B-Stock)

General Specifications

Frequency Range (-10dB)L 55 Hz – 20 kHz

Frequency Response (±3 dB)

80 Hz – 17 kHz

Power Rating

IEC System Long-Term Ratings (low-Z direct) = 150 Watts Continuous Program Power ; 75 Watts Continuous Pink Noise (300W peak), 100 hrs

Sensitivity

88 dB (1kHz - 16 kHz)

Coverage Angle

120° conical, constant directivity

Directivity Factor (Q)

5.6

Directivity Index (DI)

7.3 dB

Maximum SPL (1m)

107 dB (low-impedance, 113 dB peak) ; 106 dB (top 70V/100V tap)

Impedance

8 ohms (in bypass mode)

Transformer Taps

60W, 30W, 15W, (& 7.5 W @ 70V), plus transformer bypass

Transformer Insertion Loss

0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W

Drivers

Drivers 130 mm (5.25 in) ; HF Driver

LF Driver

Input Connectors

Input Connectors 1) + in, 2) - in, A)+ loop thru, B) - loop thru

Two removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm). Key

Knockouts

Two (top, and side)

Safety Agency

Suitable for use in air handling spaces per UL1480 Speakers for Fire Alarm, Emergency and Commercial and Professional Use, complies with UL-2043 Fire Tests for Heat and Visible Smoke Release for Discrete Products, CUL, NFPA-70, NFPA- 90A Installation of Air Conditioning and Ventilation Systems. In accordance with the requirements of IEC60849/EN60849.

Included Accessories

C-ring support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), press-in grille, knockout strain relief, cutout template, paint shield, 2 removable locking multi-pin connectors.

Optional Accessories

MTC-26NC New Construction Bracket MTC-26MR Mud Ring Construction Bracket

Backcan

formed steel (included "blind-mount")

Baffle/Rim

ABS baffle with UL94-V0 flame class fire rating.

Plenum Usage

Yes, backcan included

Dimensions

Dimensions

250 mm (9.9 in) diameter, 239 mm (9.4 in) mounting depth

Ceiling Cutout Size

220 mm (8.75 in)

Ceiling Thickness Range

Accommodates tiles / drywall up to 70 mm (2.75 in) thick

Net Weight

3.9 kg (8.6 lb)

Shipping Weight

8.6 kg (19.0 lb), pair pack
