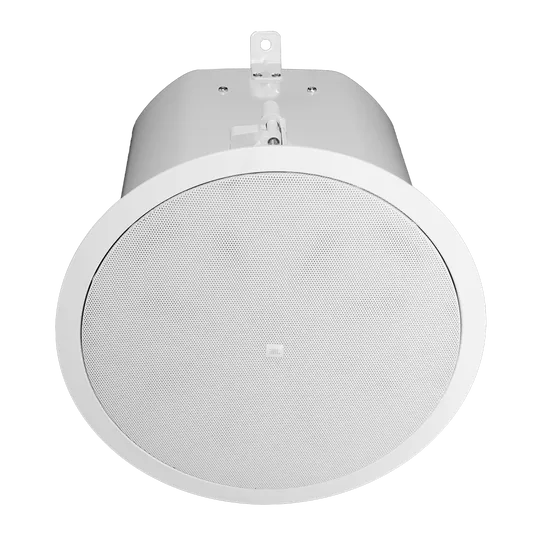

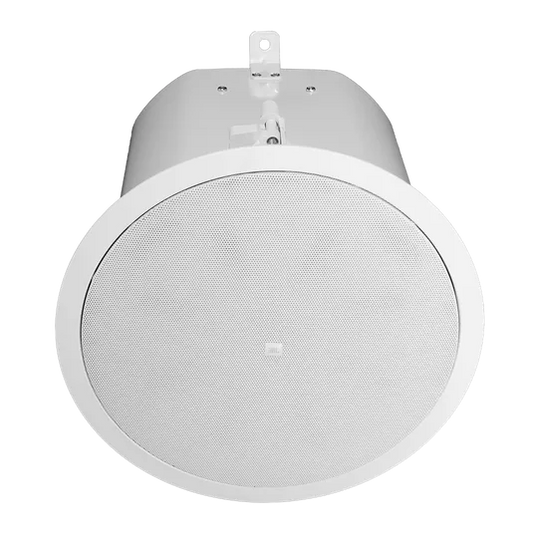

JBL Control 47C/T
Regular price
$100.50
Sale price
$335.00

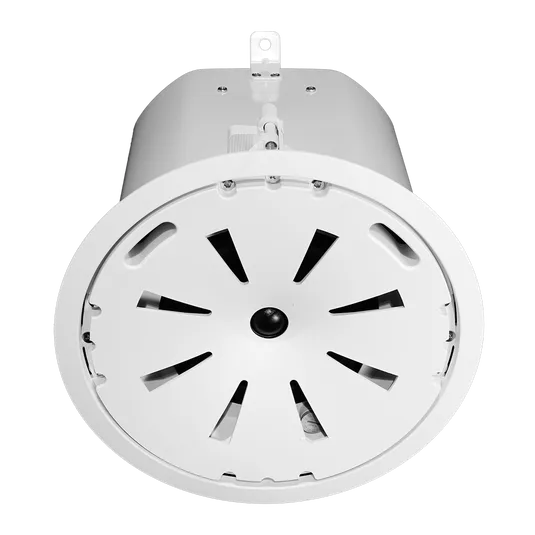

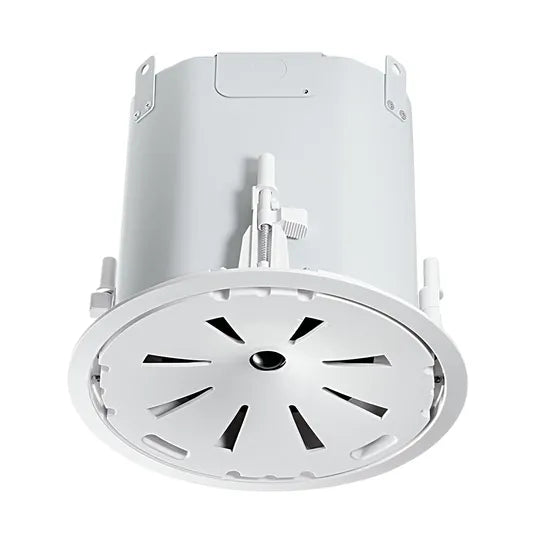

The Control 47C/T is a premium in-ceiling professional loudspeaker designed for applications that require extremely wide bandwidth along with very consistent coverage. Featuring JBL’s exclusive conical Radiation Boundary Integrator® (RBI™), the RBI provides a large waveguide for the tweeter while low-frequency sound projects through specially-designed apertures in the RBI, allowing for a seamless integration of coverage between the two coaxially mounted drivers. The result is extremely consistent sound character with very little variation throughout the listening space. The wide coverage allows for the use of fewer loudspeakers compared to speakers with less consistent coverage control, while at the same time providing better coverage of the area. The large backcan on the Control 47C/T, along with the LF driver design, provides extended bass response for a warm full-bodied tone. The system’s 165 mm (6.5 in) woofer features a polypropylene cone and pure butyl rubber surround for long life. The copper-clad aluminum voice coil wound on a vented aluminum former provides low distortion and high sensitivity. The coaxially mounted 25 mm (1 in) soft dome features internal damping for smooth extended response and ferrofluid cooling for enhanced power handling and reduced power compression. The result is crisp, clear highs. Ideal for small and large projects alike, the Control 47C/T is switchable for use as either an 8-ohm low-impedance speaker, or as part of a 70V/100V distributed loudspeaker system.
Provides 120° Wide, Extremely Consistent Coverage
For enhanced power handling and reduced power compression
The large backcan along with the LF driver design provides extended bass response for a warm full-bodied tone
General Specifications
- Frequency Range
- 55 Hz - 20 kHz
- Power Rating
- IEC System Long-Term Ratings (low-Z direct) - 150 Watts Continuous Program Power ; 75 Watts Continuous Pink Noise (300W peak), hrs
- Sensitivity
- 91 dB (1kHz - 16 kHz)
- Transformer Taps
- 60W, 30W, 15W (7.5W at 70V only)
- Coverage Angle
- 120° conical, constant directivity
- Impedance
- 8 ohms (in bypass mode)
- LF Driver
- 165 mm (6.5 in)
- HF Driver
- 25 mm (1 in)

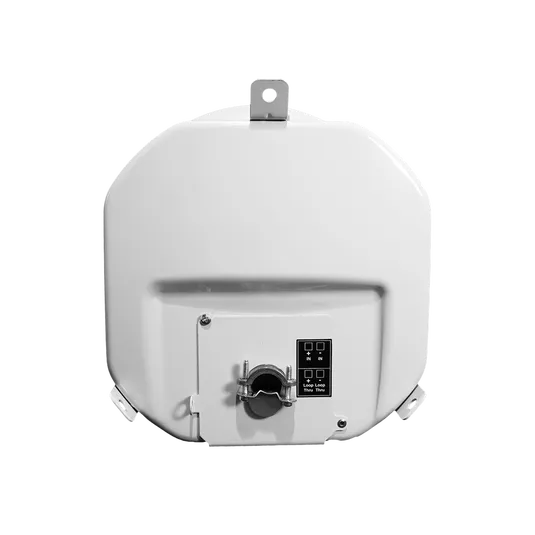

- Input Connectors
- Two removeable locking 2-pin connectors with screwdown terminals
- Included Accessories
- C-rings, tile rails, paint shield, cutout template, Grille
- Suspension Tabs
- Three, on top panel
- Maximum SPL (1m)
- 110 dB (low-impedance, 116 dB peak) ; 109 dB (top 70V/100V tap)
- Safety Agency
- Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

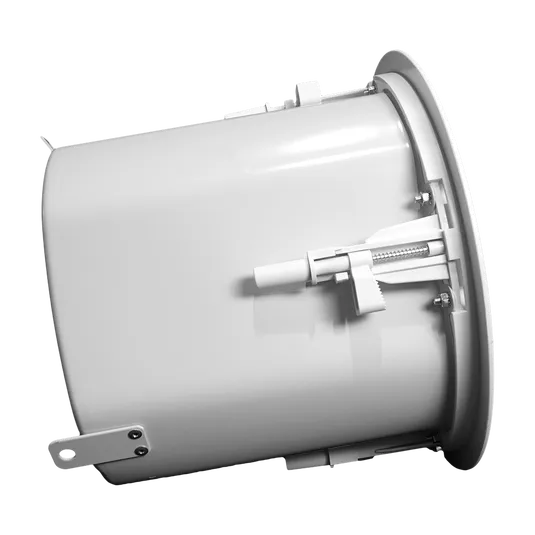

- Backcan
- Formed steel (included "blind-mount")
- Baffle/Rim
- ABS baffle with UL94-V0 flame class fire rating
- Ceiling Cutout Size
- 282 mm Diameter (11.1 in) (cardboard cutout template included)
- Optional Accessories
- MTC-47NC New Construction Bracket MTC-47MR Mud Ring Construction Bracket
- Plenum Usage
- Yes, backcan included
Dimensions
- Dimensions (Diameter x Depth)
- 305mm Diameter x 259mm Depth (12.0 in x 10.2 in)
- 1 x Control 47C/T
- 1 x C-ring support backing plate
- 2 x Tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
- 1 x Knockout strain relief
- 1 x Cutout template
- 1 x Paint shield
- 2 x Removable locking multi-pin connectors
- 1 x Grille
