JBL Control CRV
Regular price
$100.50
Sale price
$335.00

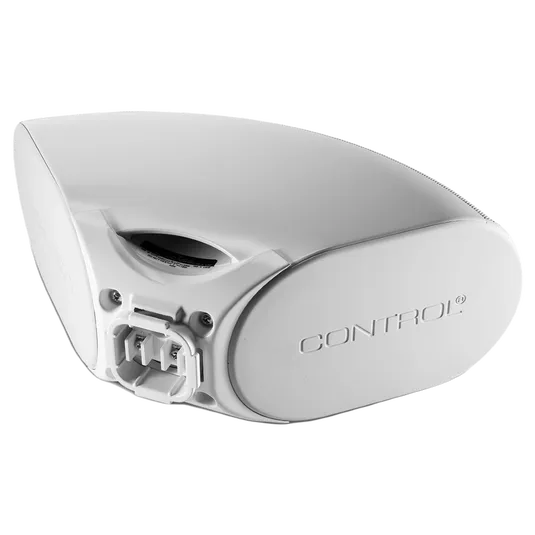

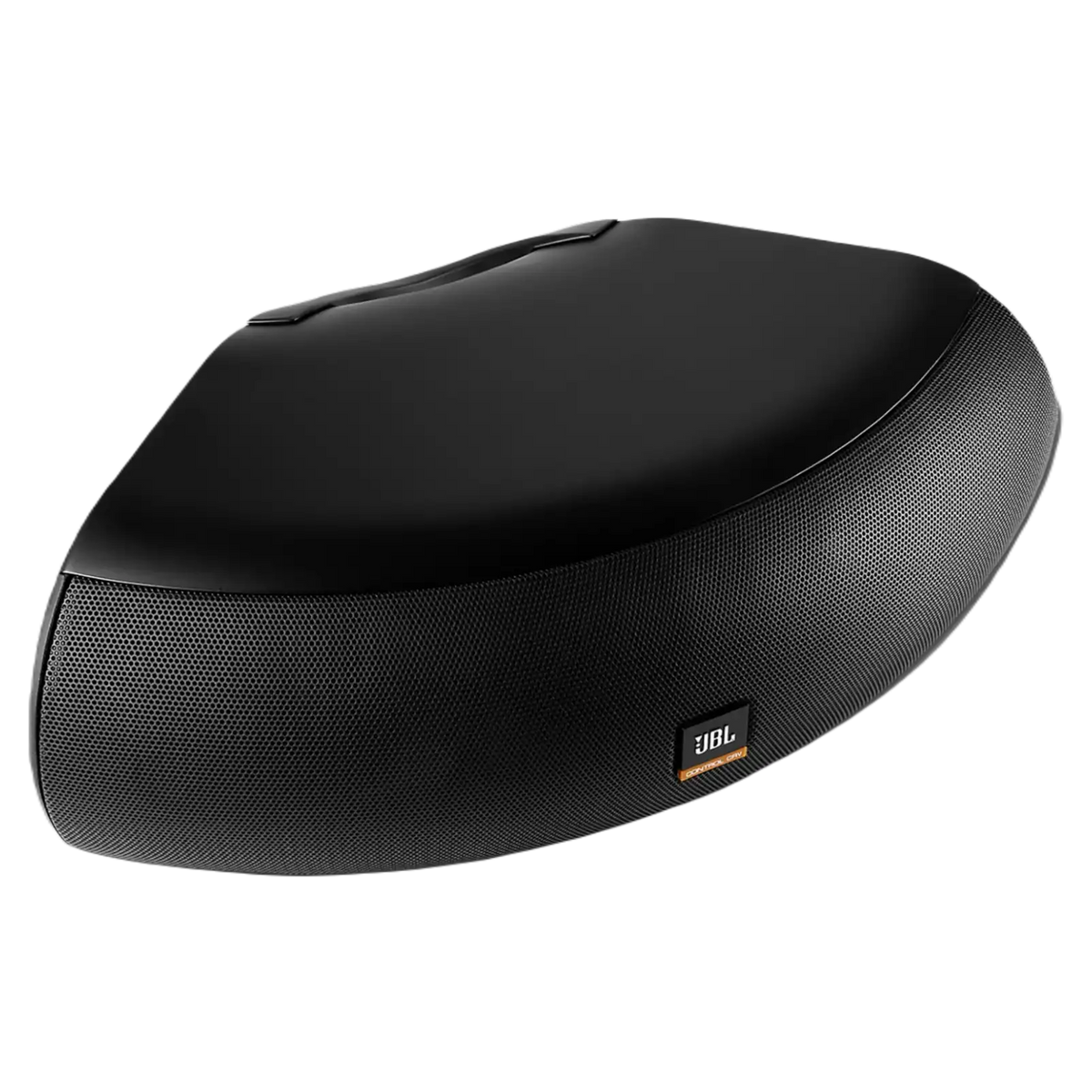

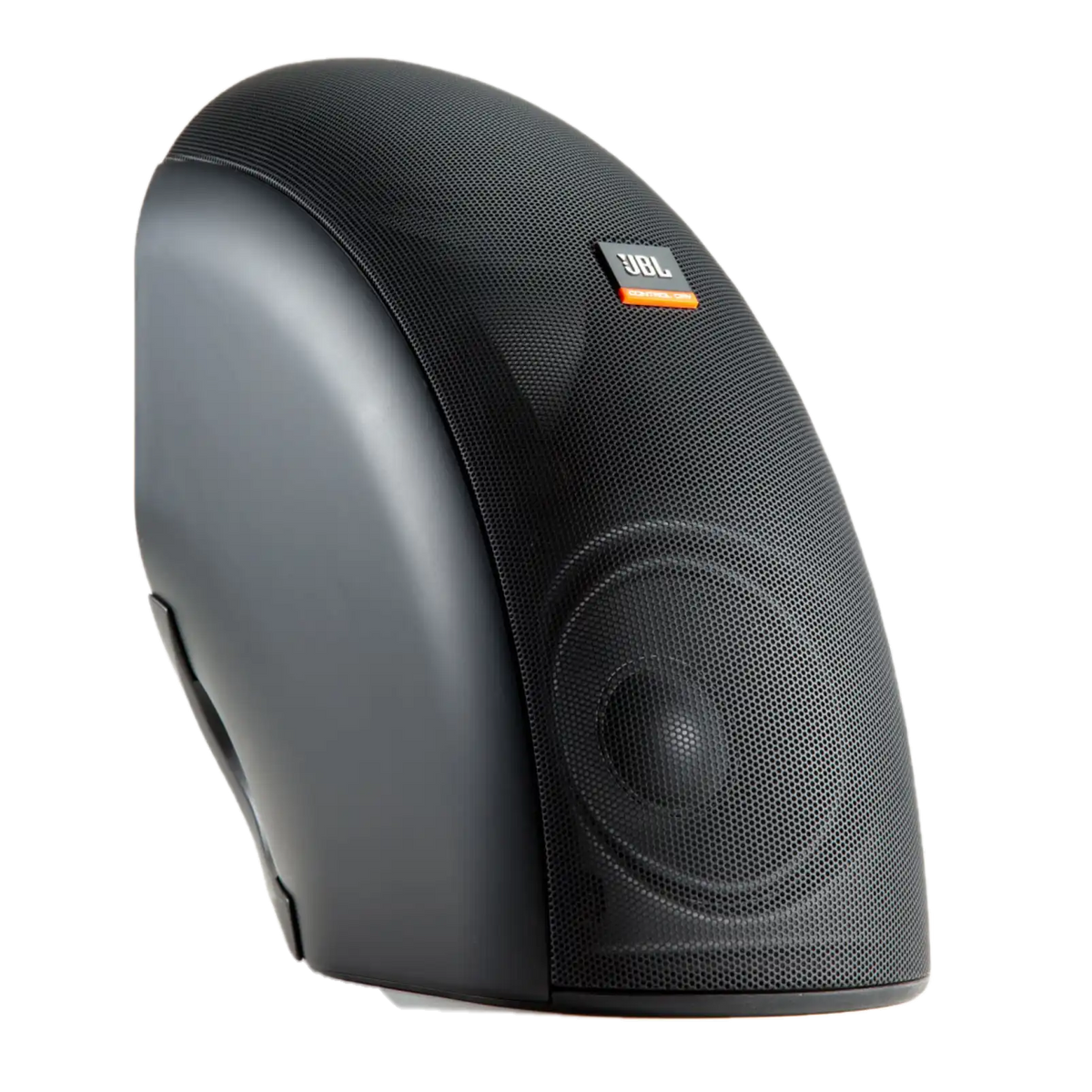

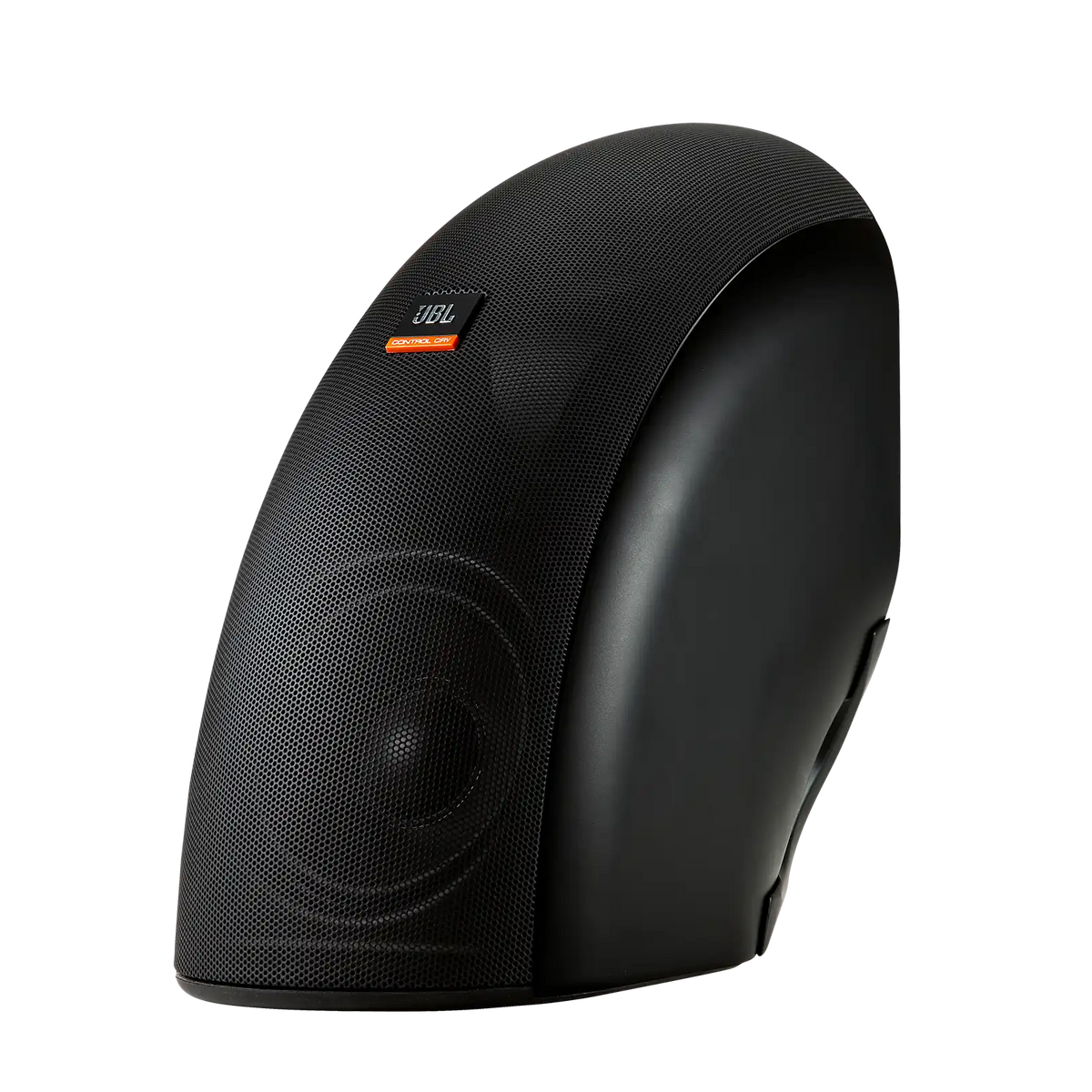

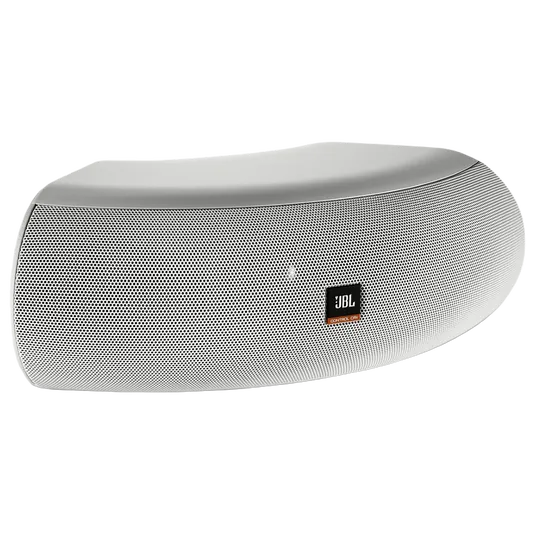

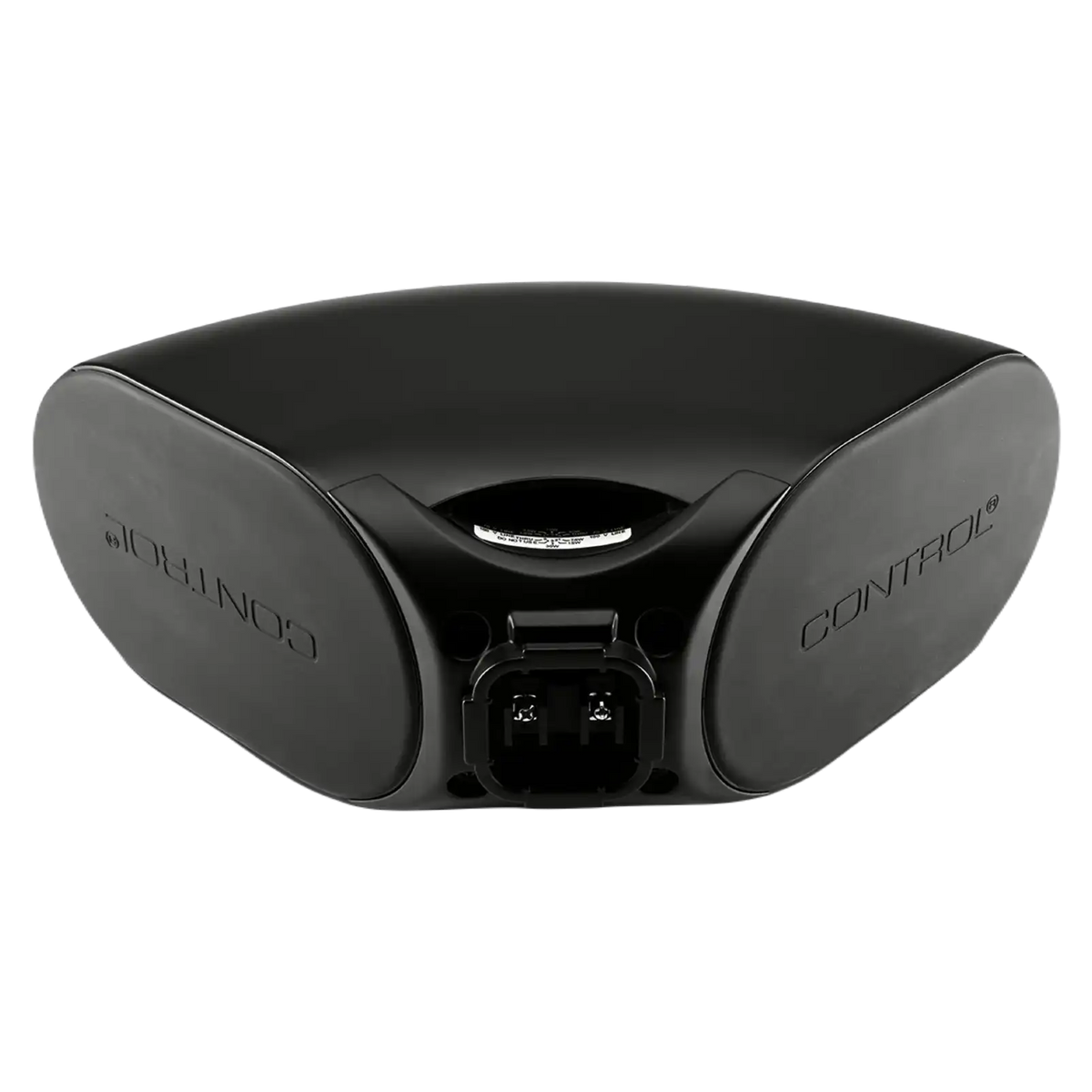

The Control CRV brings high design and versatility to high-finish commercial venues that require a fashionable look. JBL Control CRV loudspeakers are exceedingly versatile, with multiple installation possibilities ; wall-mounted aimed straight out, angled down at a 45° aiming axis, mounted spanning the junction of a wall and ceiling, or spanning the junction of two walls. Two, three, or four (with optional PMB pole-mount bracket) Control CRV loudspeakers can be joined together to create loudspeaker solutions for a wide variety of coverage, appearance, and mounting requirements.
Dual 100 mm (4 in) woofers and 19 mm (¾ in) titanium-laminate tweeter
For distributed loudspeaker lines, plus 4 ohm direct capability
IP-34 (per IEC 529)
With versatile mounting configurations
General Specifications
- Frequency Range
- 80 Hz – 20 kHz
- Power Capacity
- 75 W continuous pink noise (300 W peak)
- Transformer
- Selectable 70V/100V or low impedance
- Usability
- Indoor/outdoor capable
- Sensitivity
- 89 dB, 1W @1m
- Maximum SPL (1m)
- 108 dB continuous average long-term (peaks of 114 dB)
- Coverage Angle
- 105°H x 80°V
- Impedance
- 4 Ohms
- Transformer Taps
- 30 W, 15 W, 7.5 W (plus 3.8 W @ 70 V only), plus Thru
- Drivers
- LF Driver = Dual 4" (100 mm) ; HF Driver = 3/4" (19 mm)
- Input Connectors
- Screw-down terminal strip
- Grille
- Zinc-plated steel
- Mounting Hardware
- Included wall-mount bracket. Optional pole-mount accessory
- Outdoor Capability
- IP-34 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray
- Included Accessories
- Corner/wall-mount bracket with cap, screws, and trim covers
- Optional Accessories
- Pole-Mount Bracket for 4-speaker 360° hanging pendant cluster
Dimensions
- Dimensions
- 364 mm (14.4 in) wide, 251 mm (9.9 in) max depth including wall ; bracket, 262 mm (10.3 in) side depth, 127 mm (5 in) height
- Net Weight (ea)
- 3.2 kg (7.0 lbs)
