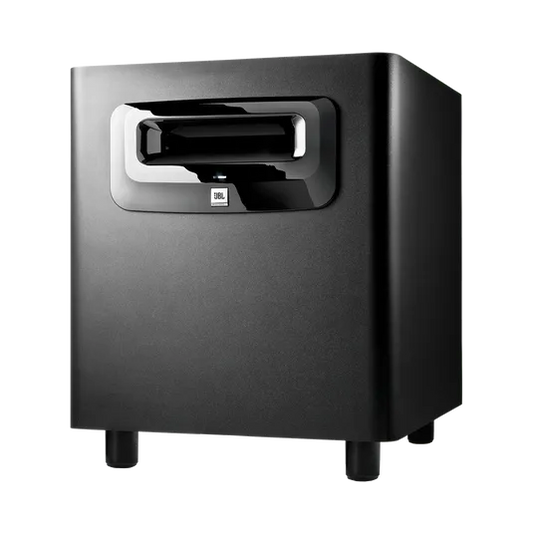

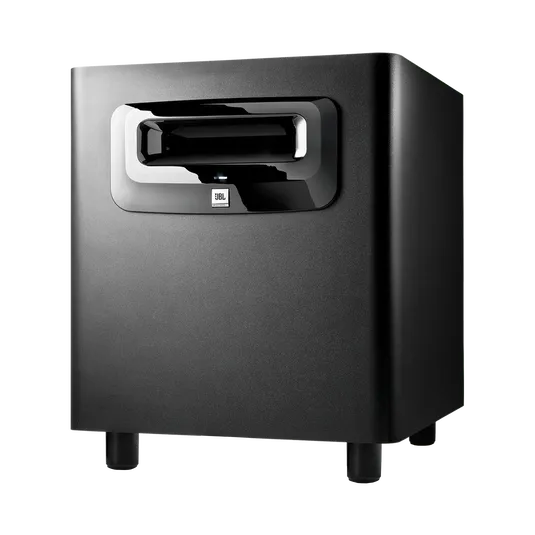

JBL LSR310S
Regular price
$140.70
Sale price
$469.00

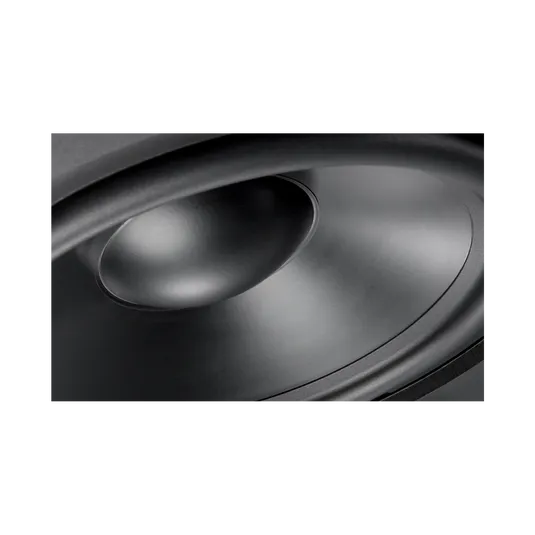

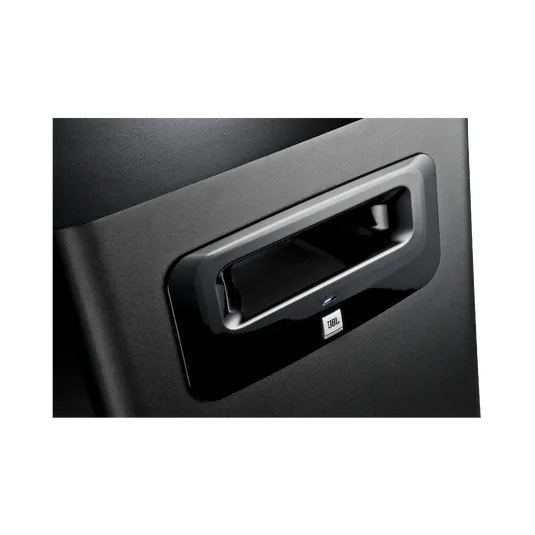

Extend your system LF all the way down! The LSR310S subwoofer incorporates JBL’s patented Slip Stream™ Port working in concert with a custom 10" down-firing driver and a 200 Watt amplifier to add deep, powerful bass to any studio monitor system. A JBL first, the XLF Extended Low Frequency setting lets you hear your tracks with the augmented bass tuning used in today’s dance clubs. Producing extended low frequency into the 20 Hz region, the LSR310S is the perfect match for the LSR305 and LSR308 Studio monitors.
With balanced XLR and 1/4" inputs and XLR outpus you can add the LSR310S to any studio monitor system to extend its low frequency performance or use it as the ".1" LFE Channel in a surround sound system.

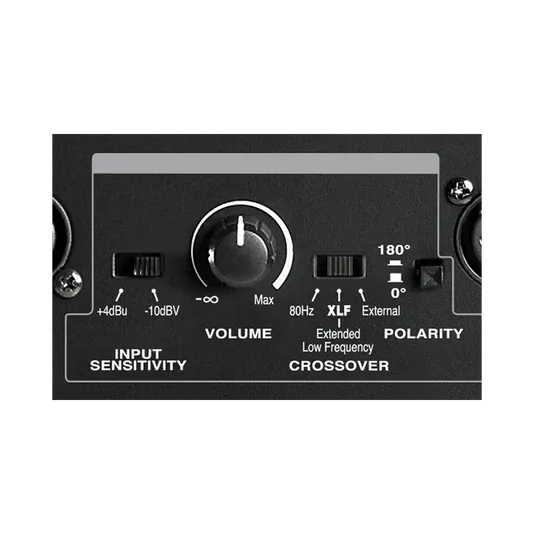

The 80 Hz setting is recommended for use with the LSR305, LSR308 or any studio monitors. The External setting allows use of an outboard crossover.
The -10dBV/+4 dBu sensitivity switch ensures compatibility with a broad range of signal sources, allowing you to connect the LSR310S to high-output professional equipment without any danger of input overload.
Simple and effective, the LSR310S volume control has detents that make it easy to balance the LSR310S in your studio monitor system
General Specifications
- Driver
- 250mm (10-inch) High-Excursion, Down-Firing
- Low Frequency Extension
- 27 Hz
- Max Peak SPL
- 113 dB
- Amplifier Power
- 200 W CLass D
- Crossover Settings
- 80 Hz, XLF, External
- Inputs
- 2 x XLR, 2 x TRS Balanced
- Outputs
- 2 x XLR
- Maximum Peak Input Level
- +20.3 dBu
- AC Voltage
- 100-240 VAC +/- 10% 50/60 Hz
Dimensions
- Height
- 17.65 in (448 mm)
- Width
- 15 in (381 mm)
- Depth
- 15.65 in (398 mm)
- Weight
- 34.3 lbs (15.6 kg)
- 1 x LSR310S Subwoofer
- 1 x Power Cord
- 1 x Quick Set Up Guide
