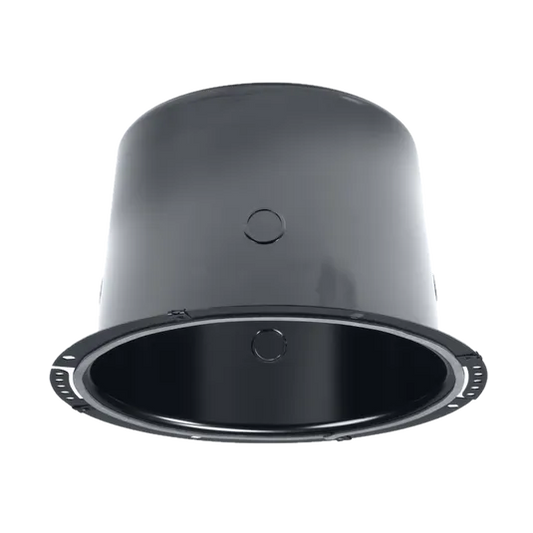

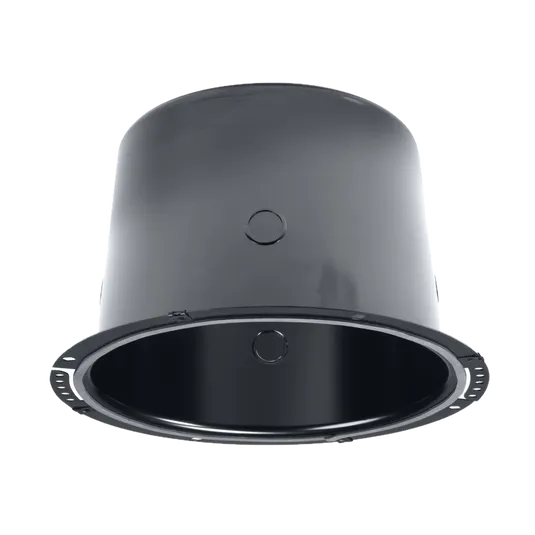

JBL MTC-81BB8
Regular price
$20.10
Sale price
$67.00
The MTC-81BB8 is designed for use in applications requiring preinstalled backcans and is compatible with ceiling speakers having a 286 mm (11.25 in) mounting circle diameter, such as the JBL 8138 ceiling loudspeaker, and the JBL MTC-81TB8 tile bridge for suspended ceilings.
Minimizes storage space requirements
Allows for extra bass
General Specifications
- Internal Volume
- 7.4 liters (0.26 cu ft)
- Knockouts
- 22 mm (0.87 in) diameter opening ; Five (5) locations - 4 on side of can1 on top of panel of can.
- Suspension Tabs
- 2 flexible perforated mounting straps, one on each side
- Attachment Points
- 4 clip-nuts on 286 mm (11.25 in) mounting circle fix M4 tapping screws for attaching tile bridge to backcan, plus 4 thru holes providing clearance for screws from speaker to attach to tile bridge (see assembly drawing)
- Material
- 16 gauge (1.3 mm thick) steel, finished in black polymer E-coating for a high level of rust resistance
- Associated Models
- 8138 200 mm (8 in) ceiling speaker ; MTC-81TB8 tile bridge for 600 mm (24 in) ceiling tile applications
Dimensions
- Dimensions (H x W x D)
- 178 mm (7 in) height x 300 mm (11.75 in) width and depth
- Net Weight (each)
- 1.1 kg (2.5 lbs)
- Shipping Weight (ea)
- 1.5 kg (3.2 lbs)
