JBL SRX922 AF
Regular price
$119.70
Sale price
$399.00

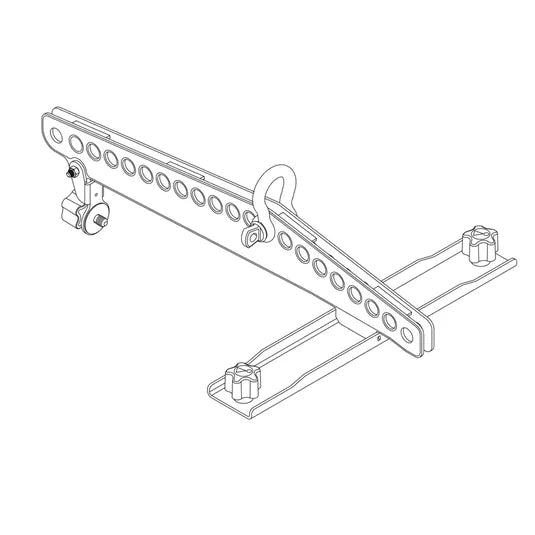

The SRX922 AF is a lightweight, compact array frame designed for suspending SRX922 cabinets. It supports both single-point and dual-point suspension configurations and connects to the SRX922 cabinet using the top and rear-top M10 QuickLink™ attachment points. Multiple shackle mounting positions are provided on the top of the array frame for single-point suspension. The holes are sized for 12 mm (1/2 in) shackles and allow for a wide range of tilt angles without the need for a secondary attachment point. In applications requiring extreme down angles, a secondary suspension point can be attached to the bottom rear M10 QuickLink™ attachment point for dual-point (front-to-back) configurations using the EBK4 M10-20 eyebolt kit. The array frame is also compatible with the JBL Professional RC500 Rotating Clamp, allowing secure attachment to standard truss or pipe structures. For detailed rigging instructions and configuration options, refer to the SRX900 Series Rigging Manual.
General Specifications
- Construction
- Steel with anti-corrosion coating
- Finish
- Black powder coat
- Working Load Limit (WLL)
- 100 kg (220 lbs)
Dimensions
- Compatible Shackle Size
- 12 mm (1/2 in)
- Dimensions (H x W x D)
- 164 mm x 390 mm x 559 mm (6.5 in x 15.4 in x 22.0 in)
- Net Weight
- 3.2 kg (7 lbs)
- Shipping Weight
- 5.9 kg (13 lbs)
- 1 x Array Frame
- 1 x 1/2-inch Shackle (PN: 5118578-00)
