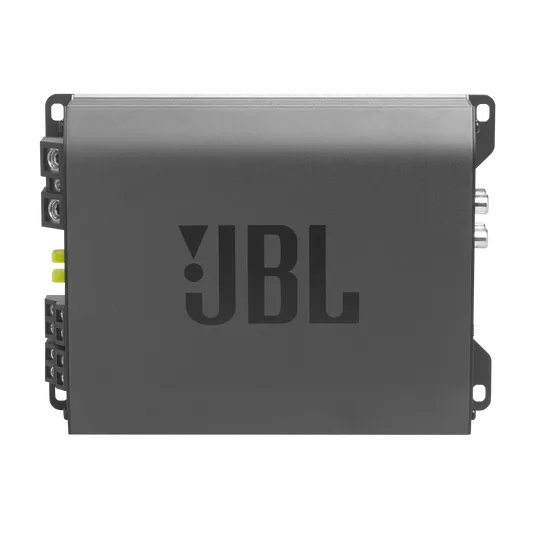

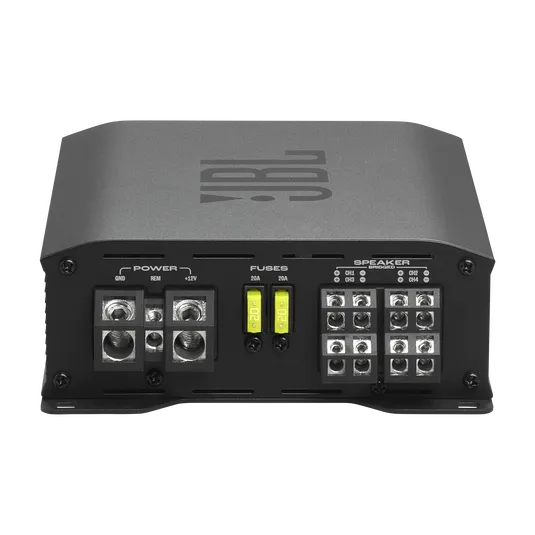

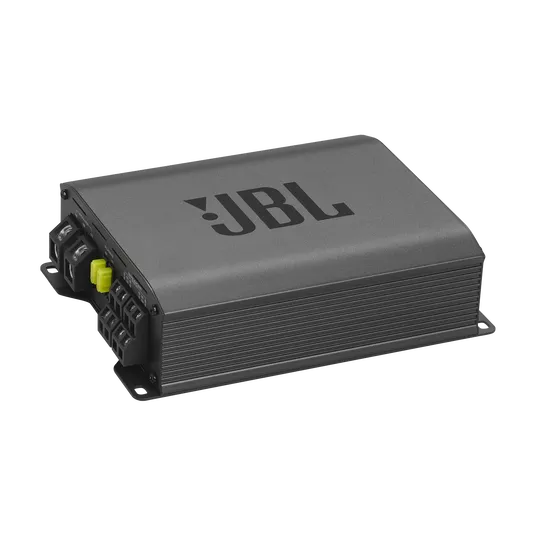

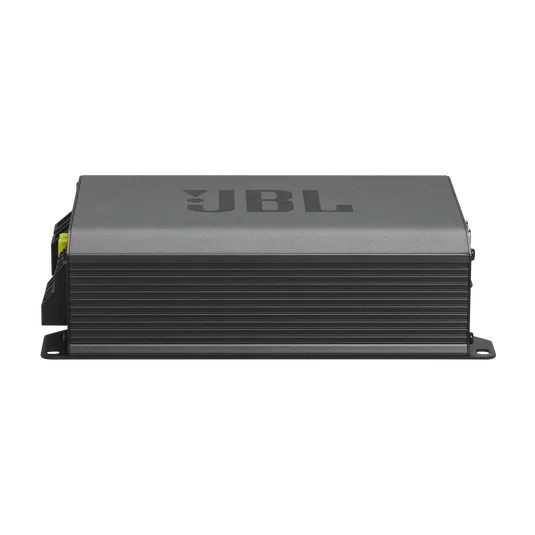

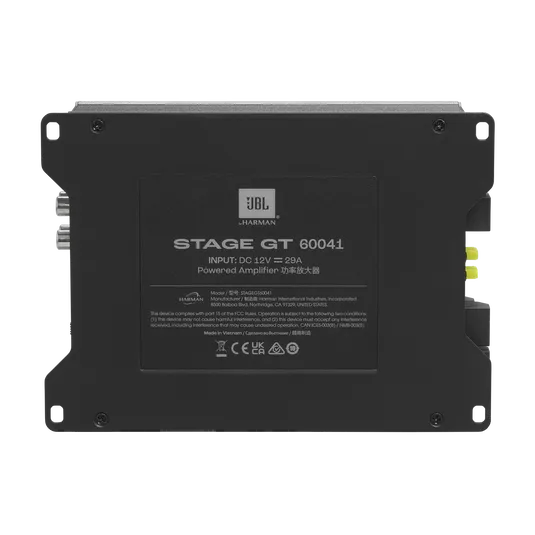

JBL STAGE GT 60041 Amplifier
Regular price
$68.98
Sale price
$229.95
The JBL STAGE GT 60041 Amplifier is a High-Performance 4-Channel Class-D Amplifier is designed to meet a variety of system configuration needs, with a suite of advanced engineering features to tune and optimize system performance for the ultimate listening experience. This compact amplifier is equipped with user controls including a bass EQ as well as HPF, LPF crossover control for tailoring sound to suit the characteristics of your vehicles.
JBL STAGE GT Amplifiers provide true JBL performance at an affordable price while having the features you need to properly fine tune and optimize you audio system performance.
JBL STAGE GT Amplifiers are engineered with on-board circuitry to protect them from shorts, overheating, overvoltage and undervoltage.
Including speaker-level inputs from 1Vrms to 25Vrms, and low-level inputs from 200mVrms to 5Vrms let JBL STAGE GT Amplifiers integrate with almost any audio input.
The OEM load detection system ensures compatibility with factory head units that require specific resistance for optimal operation. This feature enhances compatibility without the need for extra hardware, streamlining the installation process.
JBL believes that life is defined by what you experience. Music helps people have experiences that are more extraordinary, by fully immersing them in each moment. To help people have rich experiences, JBL creates sound that draws people in and heightens the feeling. JBL is dedicated to delivering sound that elevates life.
JBL STAGE GT Amplifiers have everything you need to create a quality audio system with the flexibility of mounting it in tight spaces.
JBL STAGE GT Amplifiers seamlessly integrate with vehicles featuring start/stop engines, ensuring consistent audio performance no matter where your journey leads you.
The adjustable bass EQ provides bass boost at 45Hz from 0dB to 12dB, serving as a great tool to optimize subwoofer and loudspeaker performance based on location and enclosure type.

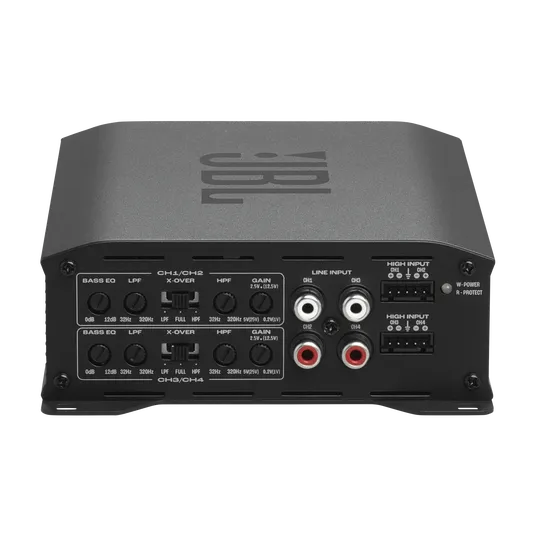

Crossover controls are switchable, allowing you to tailor the sound to suit your environment and application. Unlock precision control over your sound with individual crossover fine-tuning, ranging from 32 to 320 Hz with a 12 dB/octave slope.
At JBL, we take pride in our iconic design heritage. The smooth bead-blast of the anodized extruded aluminium amplifier body, angular end cap design, and glossy JBL logo, all tie together with our classic, current and future design language while concentrating on the design of your lifestyle.
General Specifications
- Max Power
- 1240W peak
- Power Output
- 180Wrms x 2 @ Bridged 4 ohms full range
- Power Output
- 90Wrms x 4 @ 2 ohms full range
- Power Output
- 65Wrms x 4 @ 4 ohms full range
- Frequency Response
- 20Hz - 20kHz±1dB
- THD+N@ROP
- 1%
-
Input Sensitivity LOW
Input Sensitivity LOW 1V - 25V
- 0.2V - 5V, HIGH
- High/Low Pass Filter, Variable
- 32Hz - 320Hz
- Bass EQ@45Hz
- 0 - 12dB Variable
- Protection
- DCP, OVP, UVP, OCP, OTP
- Operating Voltage
- 9V - 16V
- Fuse Rating
- 20A x 2
- 1x Amplifier
- 2x Spare Fuse
- 2x High-level Input Cable
- 4x Mounting Screw with Washer
- 2x Allen Key
- 2x JBL Stickers
- 1x QR Code Owners Manual
- 1x Safety Sheet
