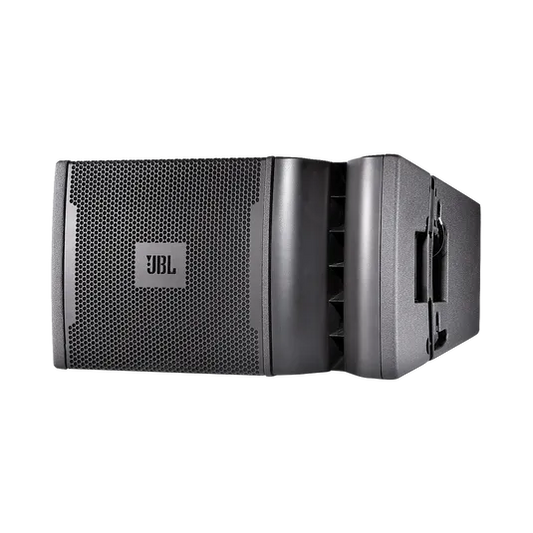

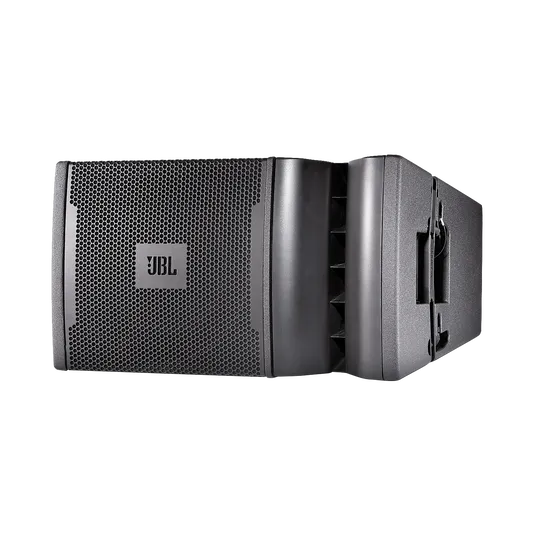

JBL VRX932LAP
Regular price
$1,064.70
Sale price
$3,549.00
The VRX932LAP is a powered, two-way, full-range line array speaker system. It is intended for small to mid size venues. The JBL DrivePack® DPC-2 amplifier module provides the power and the integrated DSP based input module system optimization and EQ. Since each VRX932LAP has a vertical coverage of 15°, line arrays up to 5 x 15° = 75° vertical included angle can be attained. Each cabinet houses 3 HF drivers mounted at equal distance on a waveguide. When combining multiple cabinets, (creating a continuous arc) the distance between the drivers to the adjacent cabinets remains the same creating a constant curvature line source. Furthermore the coverage can be optimized by means of the Array Configuration Selector (ACS), an amplitude shading feature. Built-in rigging hardware, a dual angle pole mount socket and an array frame provide a variety of suspension options.

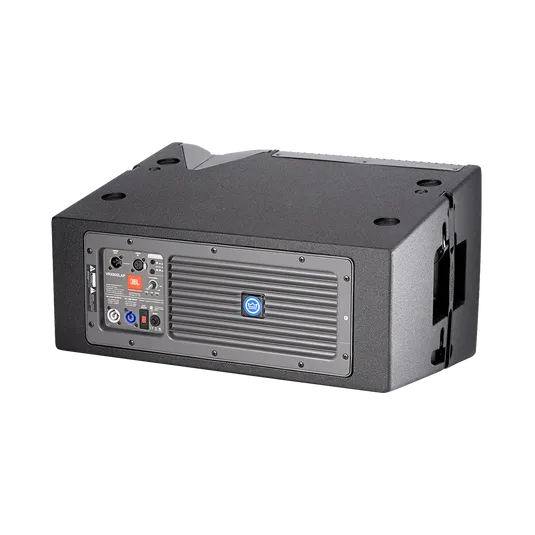

Provides 1750 Watts of peak power. DSP-based resident input module provides system optimization and EQ.
The 2408 represents the latest in JBL Professional compression driver design
For simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
VRX900 Series enclosures are constructed with premium quality birch plywood. Coated in JBL's rugged DuraFlex™ finish and heavily braced the systems are extremely durable, not to mention rigid and resonance free. The heavy duty steel grilles are internally lined with acoustically transparent foam to provide additional driver protection.
For high-power capacity and light weight
For unprecedented array coherence
Permits “array shading”
General Specifications
- Coverage Pattern (Nominal)
- 100° x 15°
- Frequency Range Hz (-10 dB)
- 57 - 20,000
- Frequency Response Hz (±3 dB)
- 75 - 20,000
- Maximum SPL (peak dB)
- 136
- Power Rating (W, Continuous)
- 875
- Power Rating (W, Peak)
- 1750
Dimensions
- Depth (in)
- 17.5
- Depth (mm)
- 444.0
- Height (in)
- 13.75
- Height (mm)
- 349.0
- Weight (kg)
- 24.0
- Weight (lbs)
- 52.0
- Width (in)
- 23.5
- Width (mm)
- 597.0
Design
- Enclosure
- 25/15 mm, 11-ply birch plywood
- Suspension / Mounting
- Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
- Finish
- Black DuraFlex™ finish
- Grille
- Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
Features
- Dual-angle pole-mount socket
- Yes
- Transducer Differential Drive JBL
- Yes
- JBL professional tunings and presents available
- Yes
- M10 suspension points
- Yes
